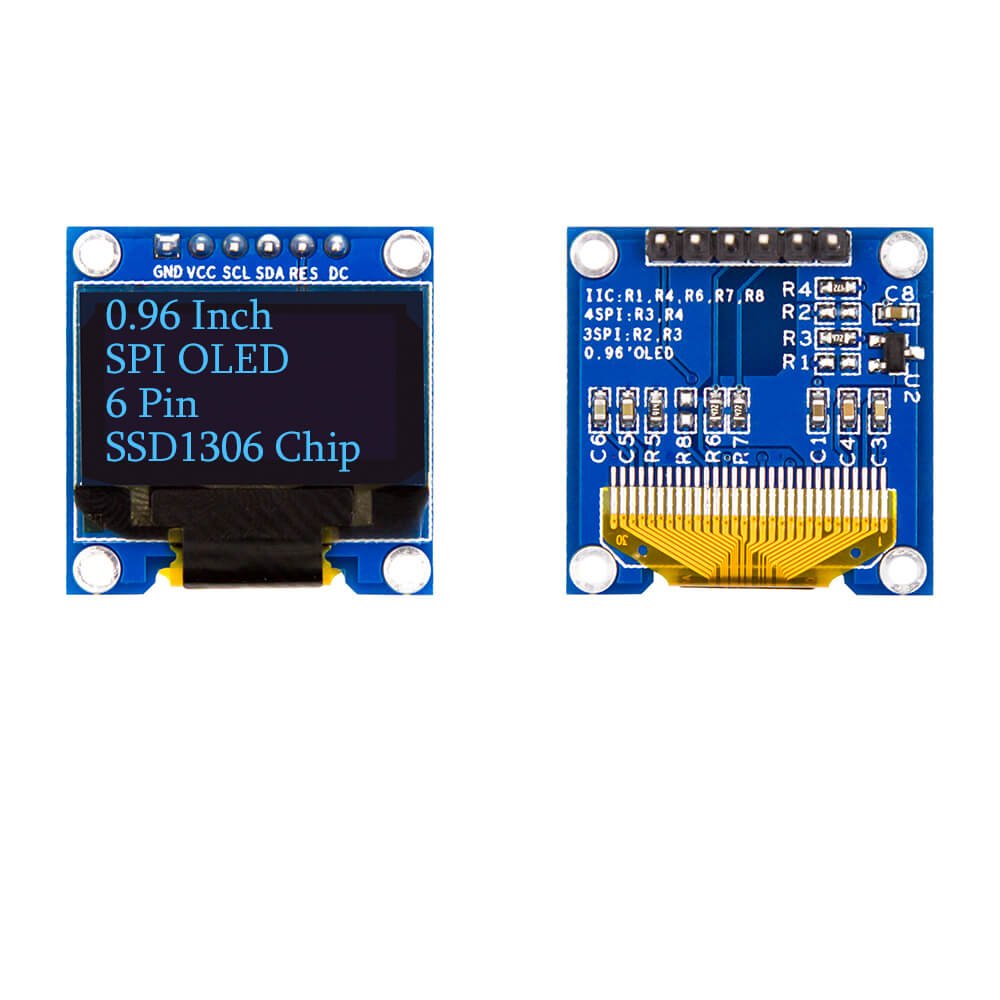

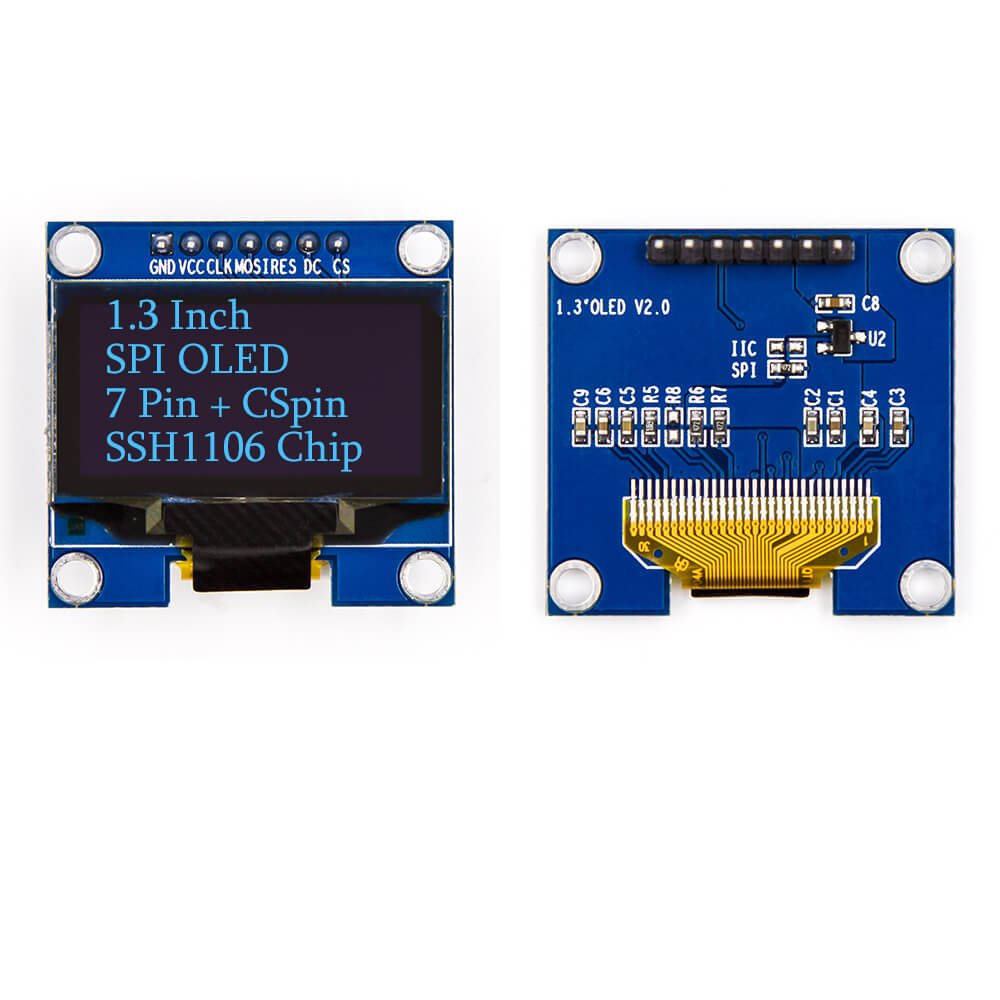

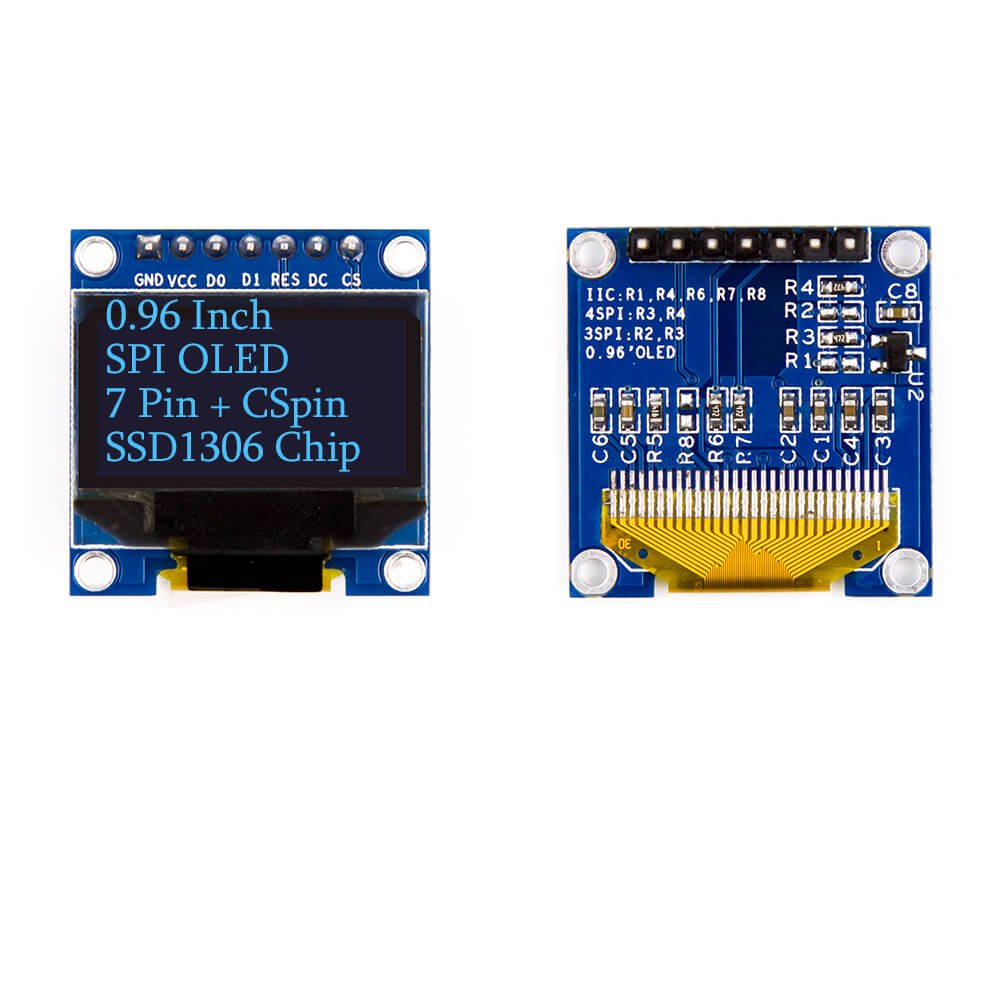

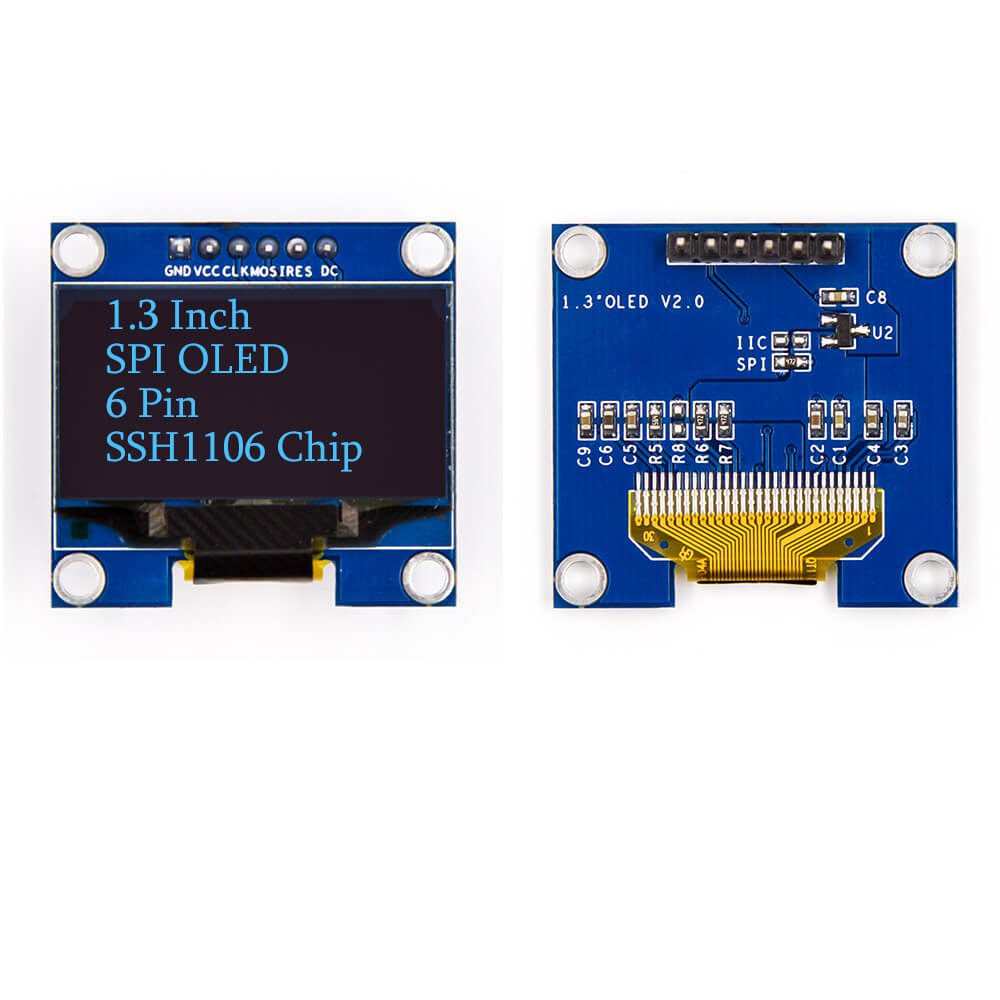

Blue SPI OLED LCD Module

0.96 Inch/1.3 Inch OLED LCD LED Display Module For Arduino SPI Communicate

OLED Technology:

  OLED display technology has self-illuminating properties, using a very thin coating of organic materials and a glass substrate. When there is current, these organic materials will emit light, and the OLED display screen has a large viewing angle and can save power. This display device was introduced on the MP3 player in the beginning of the year.

  The OLED and driver require a 3.3V power supply and 3.3V logic levels for communication. To make it easier for our customers to use, we’ve added a 3.3v regulator and level shifter on board! This makes it compatible with any 5V microcontroller, such as the Arduino.

Fretures:

• Interface: SPI
• Resolution: 128*64
• Angle of view: >160 degree
• Display dimension: 0.96 inch/1.3 inch
• Driver IC: SSD1306/SSH1106
• Power supply: 3.3V~5VDC
• Operating temperature: -20~70
• Application: smart watch, MP3, thermometer, instruments, DIY projects, etc.
