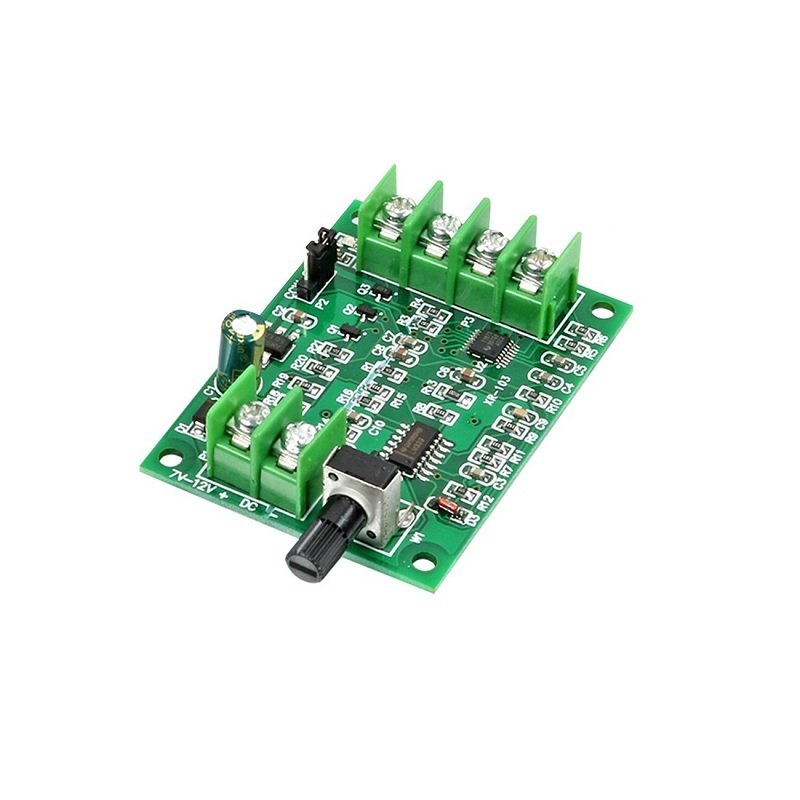

DC7V-12V Brushless Motor Driver Controller Board For Hard Drive Motor 3/4 Wire

This is a DC7V-12V Brushless Motor Driver Controller Board For Hard Drive Motor 3/4 Wire. The driver board has voltage reverse connection protection, over-current protection, short circuit protection, simple wiring, and worry-free use. The hard disk motor can be rotated at a voltage of 7-12V. The higher the voltage, the faster the speed, which can reach about 10,000 revolutions.

How to identify the common port of a 4-wire motor

• Measure the four terminals with the resistance x 1 of the meter.
• One of the terminals and the other three terminals have the smallest and equal resistance, then this terminal is the COM terminal, Which is the common terminal.
• The driver board automatically recognizes the 3-wire or 4-wire brushless motor, and the 4-wire brushless motor can also be disconnected from the COM line.

Features

• Easy to use
• Easy to install
• Good quality Product
