P2.5 P2 P3 P4 Indoor soft flexible LED Display module

Name: P2.5 P2 P3 P4 Indoor soft flexible LED Display module
SKU: 8765450256611
Availability: InStock

Price range: $25.00 through $240.00

SKU: 8765450256611 Category: Uncategorized

Indoor Soft Flexible LED Display Module
Indoor Soft Flexible LED Display Module is designed for the creative LED Screen applications. It is much flexible and can be fit any curved surface with magnetics on the module back side.

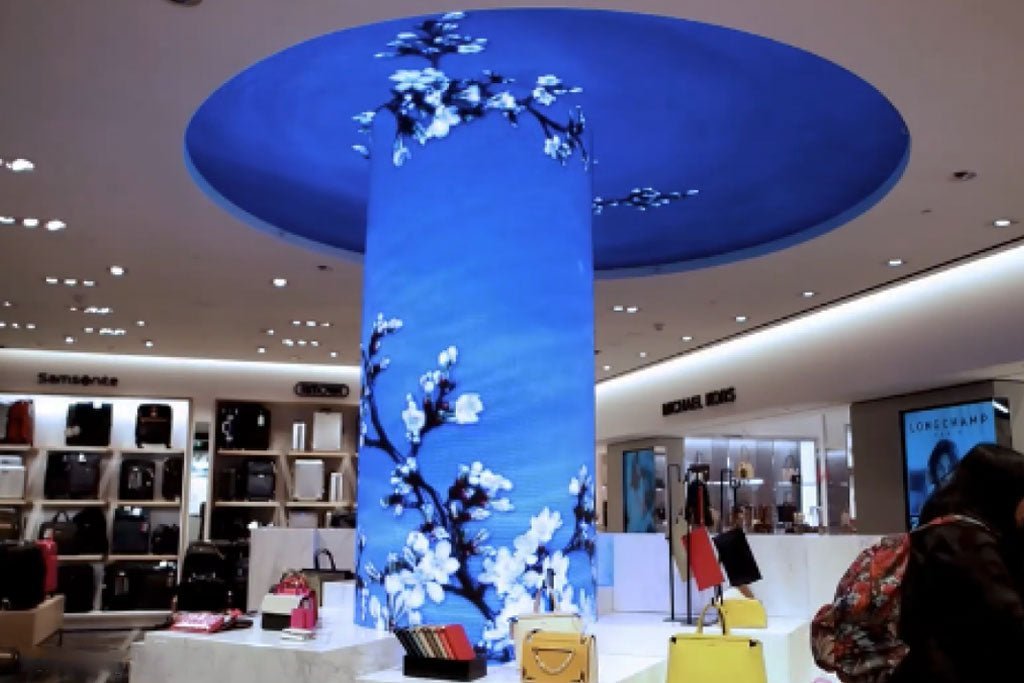

Application：Suitable for irregular construction, such as the club, stage, studio, super market, shopping mall,stadium, concert, amusement park, sight seeing area, real estate, airport etc.

Soft& Flexible: It used silicone shell work with soft PCB.
Reliable: used special SMT technology to make sure no drop LEDs.
High Refresh IC: MBI5124 driving IC.

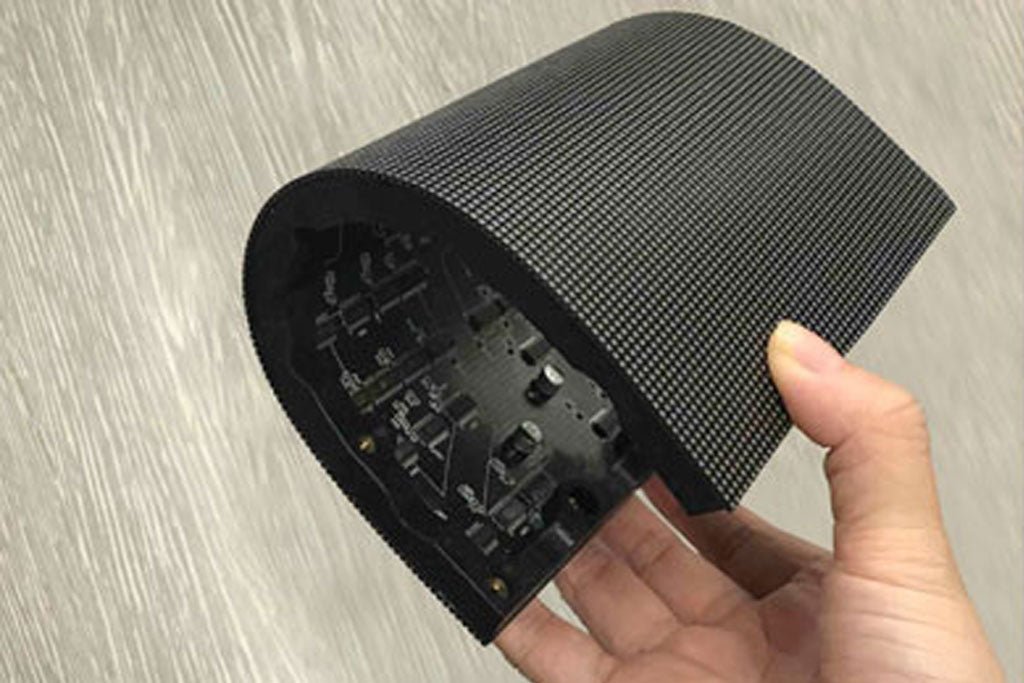

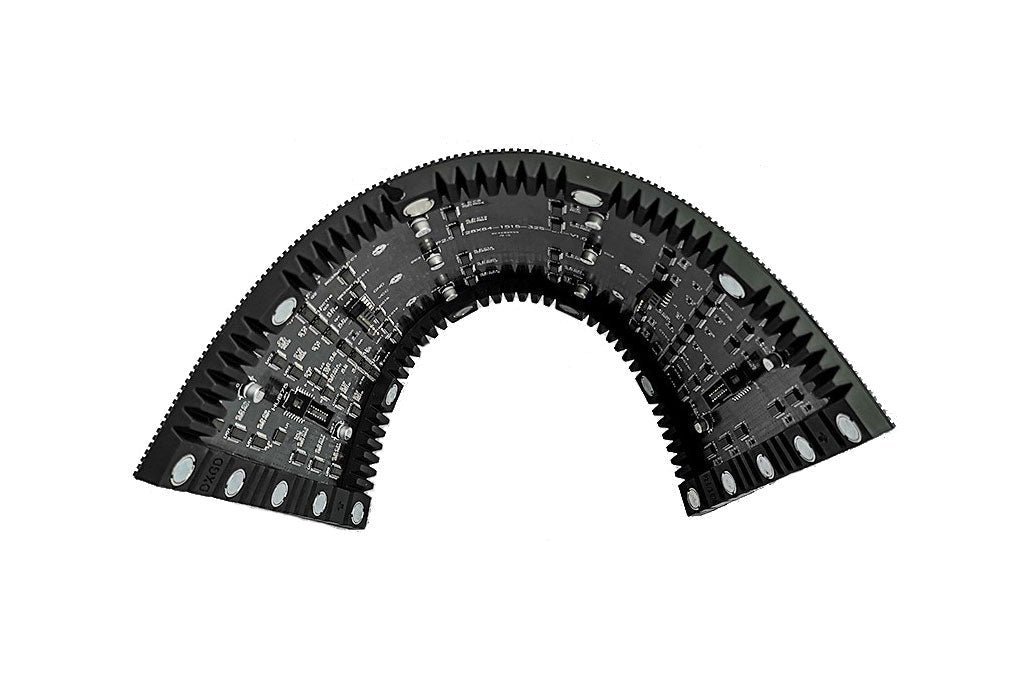

Ultra-flexible
It’s available for customized design, such like rolling, bending and swing.based on customer’s demands.

Ultra-thin
Adopting special material and advanced technology, super thin and light, weight of each module is just 0.3Kg.

Easy Assemble
Easy installation, strong magnet, available for front service.

Specification

Pixel pitch (mm)	P1.5625	P1.875	P2	P2.5	P3	P4	P5	P6	P8
LED configuration	SMD 1010	SMD 1515	SMD 1010	SMD 1010	SMD 1515	SMD 2121	SMD 2121	SMD 3528	SMD 3528
Pixel density ( pixel/m2)	409600	284444	250000	160000	111111	62500	40000	27777	15625
Module size (mm)	200*150	240*120	256*128	240*120	240*120	256*128	320*160	192*192	256*128
Module resolution (dot)	128*96	128*64	128*64	96*48	80X40	64*32	64*32	32*32	32*16
Scan model	32S	32S	32S	24S	20S	16S	16S	8S	4S
Brightness (cd/m2)	≥700	≥700	≥700	≥1000	≥800	≥1200	≥1100	≥1100	≥1100
Viewing angle	120°	120°	120°	120°	120°	120°	120°	120°	120°
Environmnet	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Brightness adjustment	0-255 level
Working voltage	AC100/240V 50/60HZ
Working temperature	-20℃～+60℃
Lifespan	100,000 hours

You’d better buy all modules at a time for one LED Screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
We recommend that you purchase the LED Screen cabinet as the smallest unit for assembly. Need to be personalized,Please leave a message to our sales staff for the LED Display system solution.
