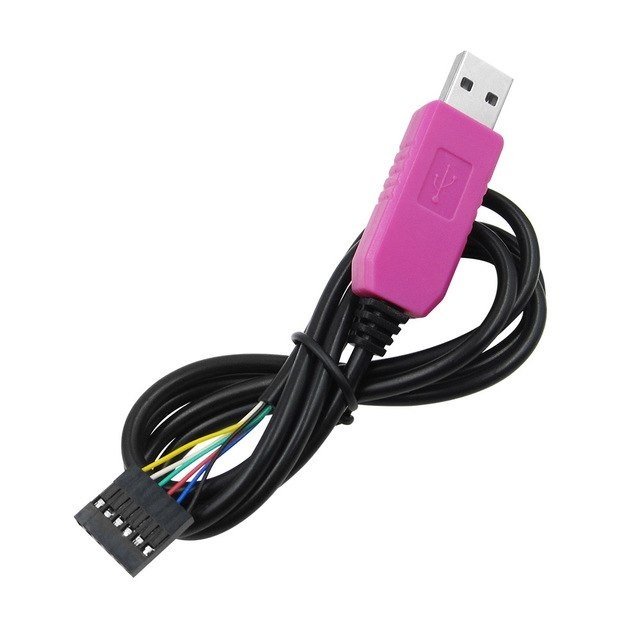

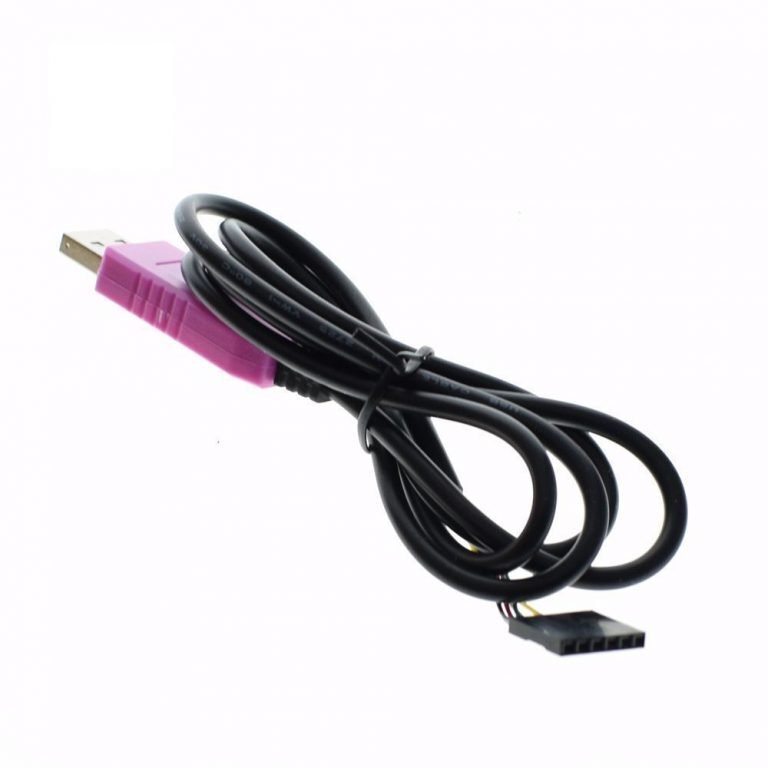

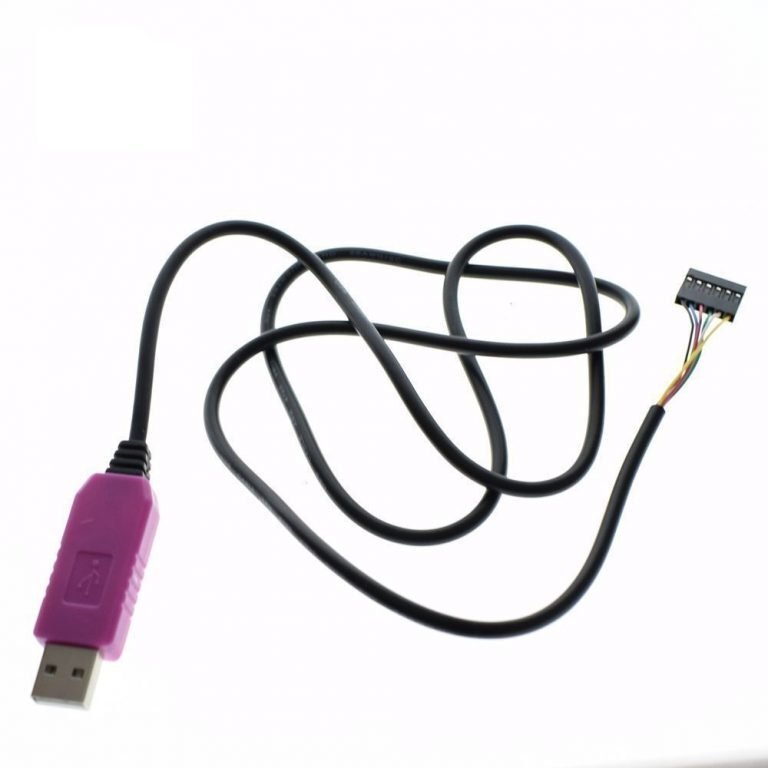

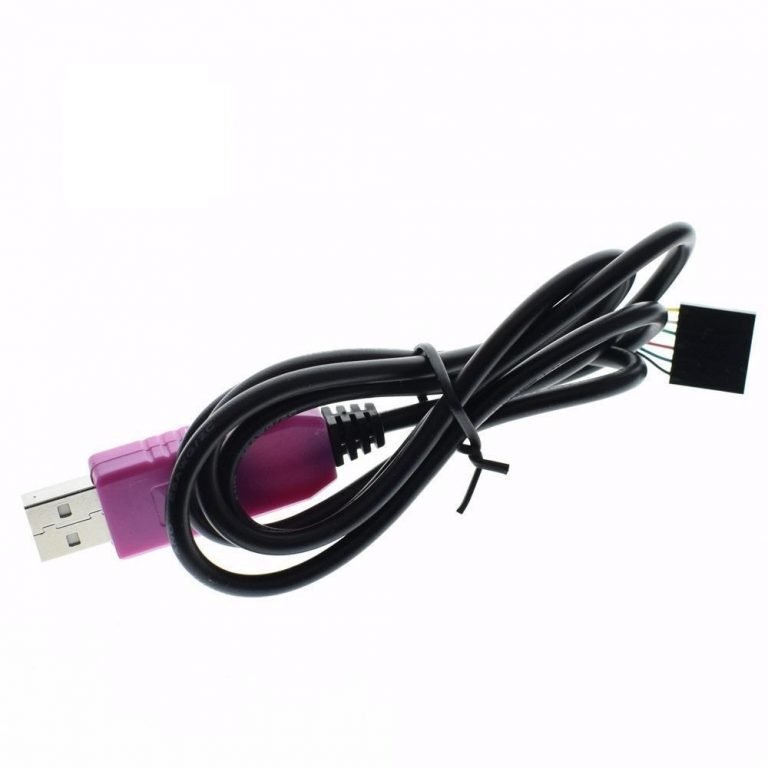

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable is a low cost and high performance USB-to-Serial Bridge Controller. It can provide a convenient solution for connecting an RS-232. In addition, it is useful for the full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host.

The PL-2303HXD‘s highly compatible drivers could simulate the traditional COM port on most operating systems. So it allows the existing applications based on COM port to easily migrate and be made USB ready. This product is designed for laboratory, product testing, low-cost MCU communications, and other applications.

There are Six leads

• Red +5 V
• Black GND
• White RXD
• Green TXD
• Yellow RTS
• Blue CTS

Applications

• Single-chip upgrade solution for Legacy RS232 devices to USB interface
• USB to RS232 converters/cables/dongles
• Healthcare/Medical USB Interface Data Transfer Cable
• Personal Infotainment/Media Player Docking USB Interface
• Cellular/PDA USB Interface Data Transfer Cable
• Serial-over-IP Wireless Solution
• USB Barcode/Smart Card Readers
• GPS/Navigation USB Interface
• Point-of-Sale (POS) Terminals/Printers
• PC Docking Station/Port Replicators
• Industrial/Instrumentation/Automation Control USB Interface
• USB Modem/Wireless/Zigbee USB Interface

Features

• Supports RS-232 serial interface with Programmable baud rate from 75 bps to 12 Mbps
• Compatible with the RS422/RS485 interface
• Extensive flow control mechanism like adjustable high/low watermark level, automatic hardware or software flow control, and inbound data buffer overflow detection.
• The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
• The cables are available with a 6-way SIL, 0.1″ connector
• TTL level is 3.3V
• The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD’s FT232RQ USB to Serial
• UART interface IC device which handles all the USB signaling and protocols.
• The other end of the cable comes with a selection of different connectors supporting various applications
• Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V.
• Cable is available with either a 6-way SIL, 0.1 pitch connector, a 3.5mm audio jack, an 8 way and key 2mm pitch connector (especially relevant for use with VMUSIC2 or VDRIVE2) or bare, tinned wire end connection.
• It is USB 2.0 full speed compatible. The USB side of the cable is USB powered.
• Each cable is 97cm(38.19″) long and supports a data transfer rate up to 3 Mbaud.
