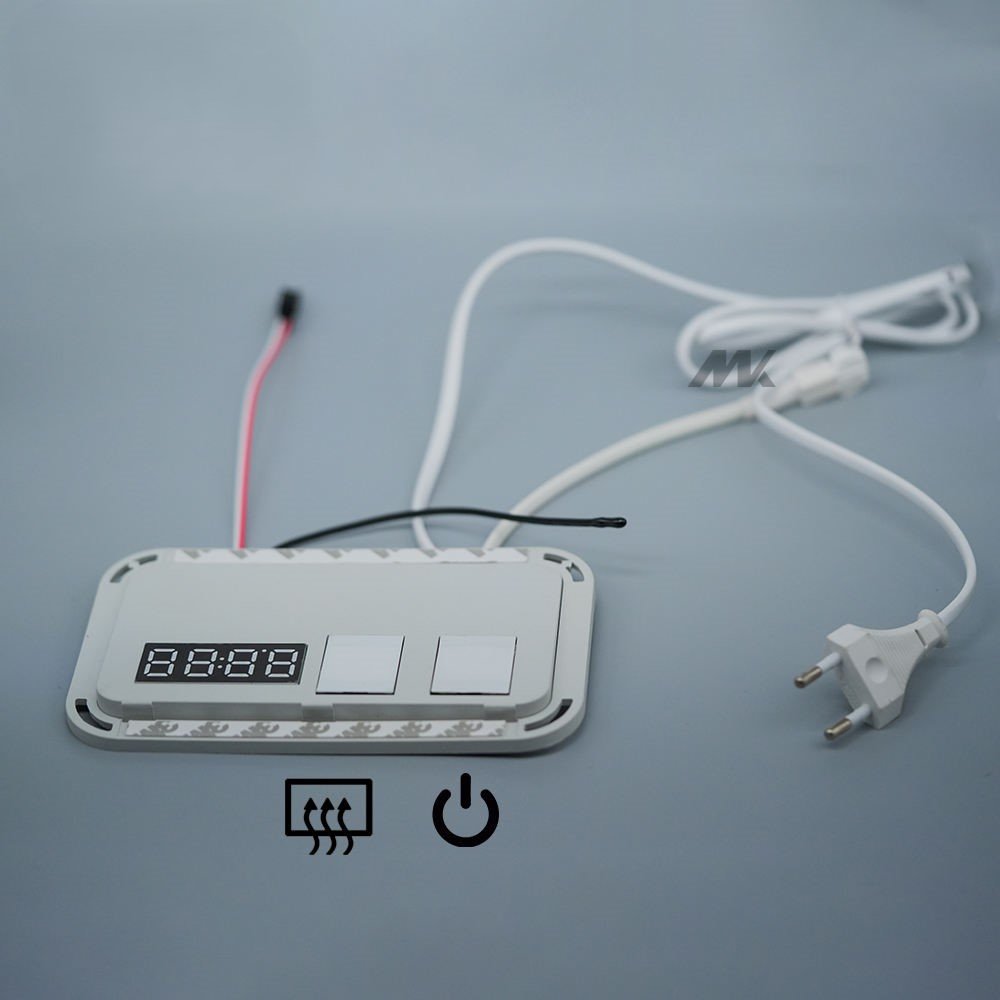

YZKJ-B3-13LTC Double Touch Switch Three Color Version Antifog Time Temperature Display 2A 24W 12V AC90-250V

Upgrade your bathroom mirror with this YZKJ-B3-13LTC Double Touch Switch Three Color Version with Antifog, Time & Temperature Display, specially designed for smart LED mirrors, anti-fog mirrors, and mirror cabinets. This advanced all-in-one unit features a built-in 24W driver that works with universal AC90-250V input, eliminating the need for a separate LED driver.

This sophisticated touch sensor switch features double-key control with three color temperatures, integrated antifog defogger control, and a digital display showing time and temperature. The built-in 24W power driver accepts wide voltage input from AC90V to 250V, making it perfect for worldwide use including USA (120V) and European (230V) installations.

With double-key touch control and integrated features, it supports:

• Left key: LED light On/Off, stepless dimming (0-100%), and color temperature cycling
• Right key: Mirror defogger On/Off control
• Digital display: Shows current time and room temperature
• Three color temperatures: Warm (3000K), Natural (4500K), Cool (6500K)
• Memory function – remembers last color and brightness setting
• Built-in 24W power driver – no external driver needed!
• Universal AC input: 90-250V works worldwide
• 24W power capacity for medium to large mirrors

Key Features

• Built-in 24W Universal Power Driver – No need for a separate LED driver! This all-in-one unit connects directly to your household power (AC90-250V). Delivers 24W of power at 12V (2A) for mirror installations. Works perfectly with USA 120V and international 230V systems. Simplifies installation and saves space.

• Digital Time & Temperature Display – Built-in LCD/LED display shows current time and room temperature. Adds functionality and a modern touch to your bathroom mirror. Perfect for checking time and temperature while getting ready.

• Double Touch Control with Antifog – Two independent buttons for separate control of LED light and mirror defogger. Intuitive and easy to use for the whole family. Dedicated defogger button keeps your mirror clear from steam and fog.

• Three-Color Temperature Control – Choose between Warm (3000K), Natural (4500K), and Cool (6500K) white light. Perfect for creating different moods and for accurate makeup application.

• 24W Power Capacity – Handles up to 24W LED load at 12V output (2A). Perfect for medium to large bathroom mirrors, vanity installations, and mirrors with higher LED density.

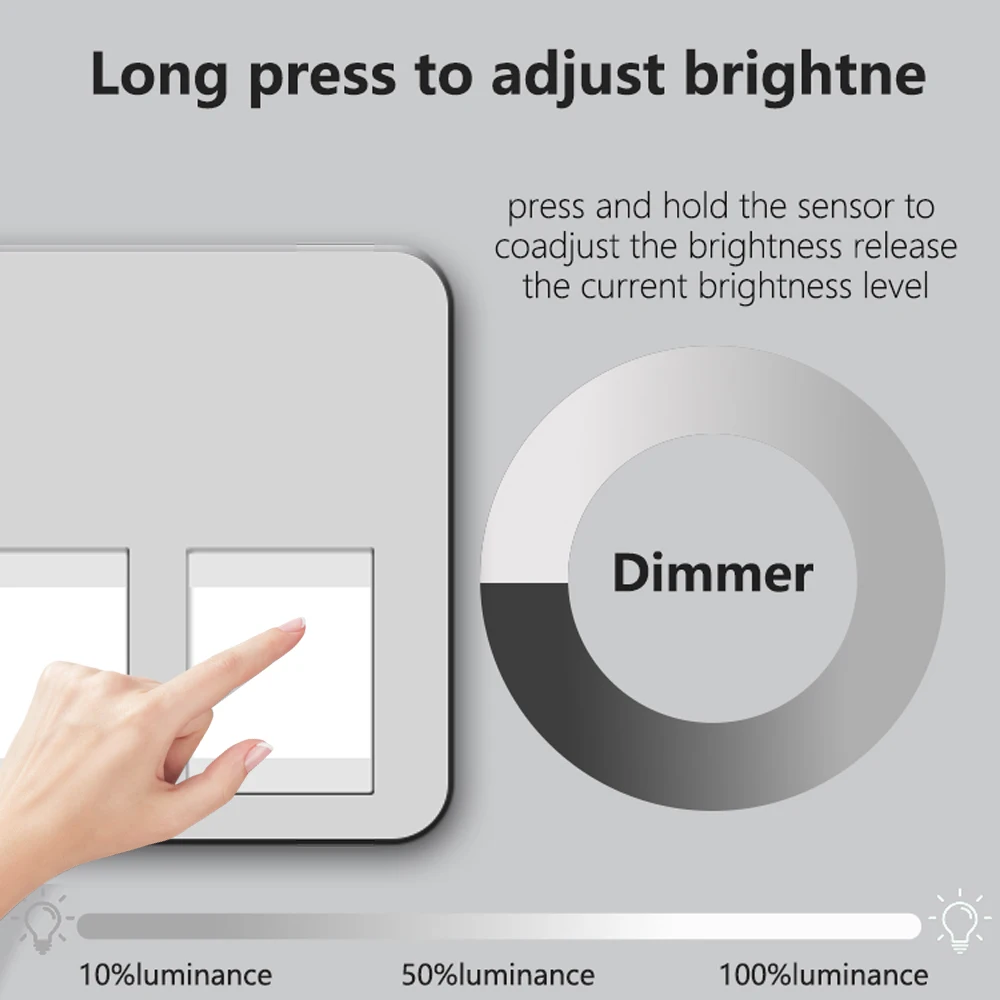

• Stepless Dimming 0-100% – Smooth brightness adjustment for LED light. Tap left key to turn on/off, touch and hold to dim up and down.

• Color Temperature Cycling – Double tap left button to cycle through three color temperatures. Find the perfect lighting for any activity.

• Memory Function – Remembers your last color temperature and brightness setting. No need to readjust every time you turn on the light.

• Built-in Antifog Defogger Control – Dedicated button for mirror defogger. Keep your mirror clear from steam and fog during hot showers. Simple on/off operation.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Compact All-in-One Design – Compact footprint combining controller, 24W power driver, and display in one unit. Fits easily behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-B3-13LTC
• Input Voltage: AC 90V – 250V (universal, works worldwide)
• Output Voltage: DC 12V (regulated)
• Output Current: 2A max
• Output Power: 24W max
• Dimming Range: 0-100% stepless
• Color Temperatures: 3000K (Warm), 4500K (Natural), 6500K (Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last color and brightness
• Frequency: 50/60Hz (auto-sensing)

Display Features
• Display Type: Digital LCD/LED
• Time Display: 12/24 hour format (selectable)
• Temperature Display: °C / °F selectable
• Temperature Range: -40°F to 167°F (-40°C to 75°C)
• Accuracy: ±1°C / ±2°F

Physical
• Dimensions: 3.3″ × 1.9″ × 0.9″ (84 × 48 × 22mm) approx.
• Weight: 77g (2.7 oz)
• Color: Black / White (specify available options)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Capacitive touch sensor
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass

Button Functions
• Left Button: LED light control
– Single tap: Turn ON/OFF
– Touch & hold: Stepless dimming (0-100%)
– Double tap: Cycle through color temperatures (3000K → 4500K → 6500K)
• Right Button: Defogger control
– Single tap: Turn ON/OFF
• Display: Shows time and temperature continuously when unit is powered

Perfect For: Medium to large bathroom mirrors, LED vanity mirrors, backlit mirrors, mirror cabinets, and any installation where separate light and defogger control with three-color options, convenient time/temperature display, and higher 24W power capacity is desired.

Package Includes

• 1x YZKJ-B3-13LTC All-in-One Unit – Integrated double touch switch with time/temperature display, three-color control, and 24W power driver
