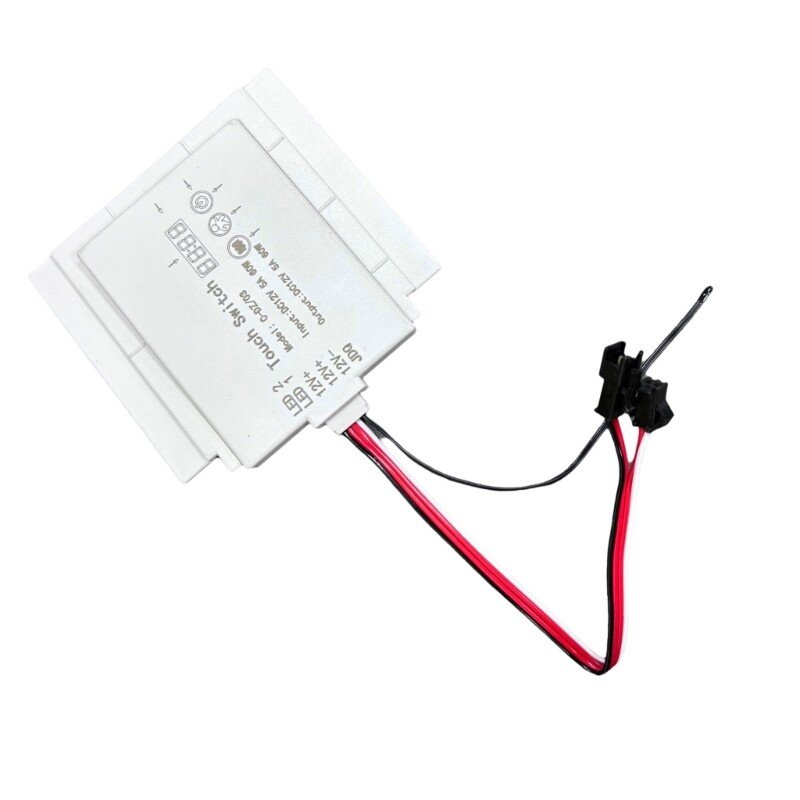

YZKJ-B3-OTOC Single Touch Switch Single Color Version Anti-fog Time Temperature Display 5A 60W 12V Convenient Touch Switches Adjustment Touch Control for Bathroom Glass Lighting

Upgrade your bathroom mirror with this YZKJ-B3-OTOC Single Touch Switch Single Color Version with Anti-fog, Time & Temperature Display, specially designed for smart LED mirrors, anti-fog mirrors, and mirror cabinets. This advanced all-in-one unit features a high-power 60W built-in driver that works with universal AC90-250V input, eliminating the need for a separate LED driver.

This sophisticated touch sensor switch features single-key control with one fixed color temperature, integrated anti-fog defogger control, and a digital display showing time and temperature. The built-in 60W power driver accepts wide voltage input from AC90V to 250V, making it perfect for worldwide use including USA (120V) and European (230V) installations.

With single-key touch control and integrated features, it supports:

• On/Off function
• Stepless dimming (0-100%)
• One fixed color temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool)
• Built-in anti-fog defogger control

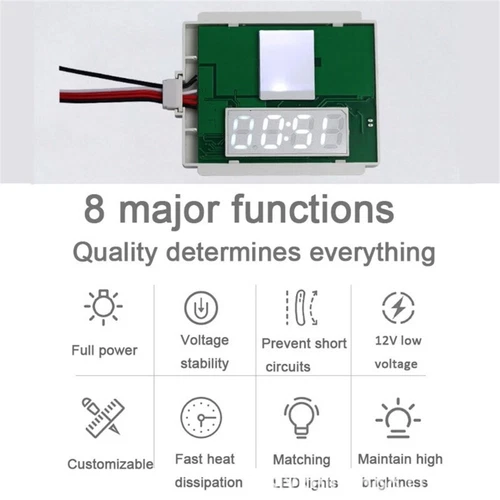

• Digital display: Shows current time and room temperature
• Memory function – remembers last brightness setting
• Built-in 60W power driver – no external driver needed!
• Universal AC input: 90-250V works worldwide
• High 60W power capacity for large, bright mirrors

Key Features

• Built-in 60W High-Power Universal Driver – No need for a separate LED driver! This all-in-one unit connects directly to your household power (AC90-250V). Delivers 60W of power at 12V (5A) for large and extra-bright mirror installations. Works perfectly with USA 120V and international 230V systems. Simplifies installation and saves space.

• Digital Time & Temperature Display – Built-in LCD/LED display shows current time and room temperature. Adds functionality and a modern touch to your bathroom mirror. Perfect for checking time and temperature while getting ready.

• Single Touch Convenient Control – One button controls all functions with adjustable touch sensitivity. Simple and intuitive operation for the whole family. Tap to turn on/off, touch and hold to dim.

• Built-in Anti-fog Defogger Control – Integrated defogger control keeps your mirror clear from steam and fog during hot showers. Simple and effective operation.

• 60W High Power Capacity – Handles up to 60W LED load at 12V output (5A). Perfect for large bathroom mirrors, commercial installations, hotel bathrooms, and mirrors with high LED density requiring maximum power.

• One-Color Fixed Temperature – Consistent color temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool) for reliable, professional lighting. Simple and intuitive for everyday use.

• Stepless Dimming 0-100% – Smooth brightness adjustment for LED light. Create the perfect ambiance for any time of day – bright for makeup application, soft for relaxing baths.

• Adjustable Touch Control – Convenient touch sensitivity adjustment allows you to customize the response to your preference. Perfect for different user preferences and installation conditions.

• Memory Function – Remembers your last brightness setting. No need to readjust every time you turn on the light.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Compact All-in-One Design – Despite the high 60W power capacity, the unit maintains a compact footprint combining controller, power driver, and display in one unit. Fits easily behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-B3-OTOC
• Input Voltage: AC 90V – 250V (universal, works worldwide)
• Output Voltage: DC 12V (regulated)
• Output Current: 5A max
• Output Power: 60W max
• Dimming Range: 0-100% stepless
• Color Temperature: One-color fixed (specify: 3000K Warm / 4000K Natural / 6500K Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last brightness
• Frequency: 50/60Hz (auto-sensing)

Display Features
• Display Type: Digital LCD/LED
• Time Display: 12/24 hour format (selectable)
• Temperature Display: °C / °F selectable
• Temperature Range: -40°F to 167°F (-40°C to 75°C)
• Accuracy: ±1°C / ±2°F

Physical
• Dimensions: 3.5″ × 2.1″ × 1.1″ (89 × 53 × 28mm) approx.
• Weight: 95g (3.35 oz)
• Color: Black / White (specify available options)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Capacitive touch sensor with adjustable sensitivity
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass
• Sensitivity Adjustment: User-configurable

Button Functions
• Single Button Control:
– Single tap: Turn ON/OFF
– Touch & hold: Stepless dimming (0-100%)
• Anti-fog: Automatically activates with light or separate control (specify)
• Display: Shows time and temperature continuously when unit is powered

Perfect For: Large bathroom mirrors, commercial installations, hotel bathrooms, spa facilities, and any installation where single-key control with convenient time/temperature display, anti-fog functionality, and maximum 60W power capacity is desired.

Package Includes

• 1x YZKJ-B3-OTOC All-in-One Unit – Integrated single touch switch with time/temperature display, anti-fog control, and 60W high-power driver
