YZKJ-B3-TMOC Manke 12V 60W Smart Dual Button Touch Sensor Dimmer Switch One/Single Color Defogger LED Time Temperature Inductive

Upgrade your bathroom mirror with this YZKJ-B3-TMOC Manke 12V 60W Smart Dual Button Touch Sensor Dimmer Switch, specially designed for smart LED mirrors, anti-fog mirrors, and mirror cabinets. This premium all-in-one unit features selectable one or three-color temperature control, integrated defogger, time & temperature display, and inductive touch technology.

This sophisticated dual button touch sensor switch combines Manke premium quality with YZKJ innovation. It features two independent buttons with selectable color mode (single OR three-color operation), integrated defogger control, and a digital display showing time and temperature. The unit accepts DC12V input and delivers 60W of power, making it perfect for medium to large bathroom mirrors.

With dual button touch control and integrated features, it supports:

• Left button: LED light On/Off, stepless dimming (0-100%), and color control
• Right button: Mirror defogger On/Off control
• Selectable mode: Single Color OR Three Color operation
• Three color temperatures (in three-color mode): Warm (3000K), Natural (4500K), Cool (6500K)
• Digital display: Shows current time and temperature (°C/°F selectable)
• Memory function – remembers last color and brightness setting
• Inductive touch technology for reliable performance
• DC12V input for flexible installation
• 60W power capacity for bright mirrors

Key Features

• Manke Premium Quality – This collaboration unit combines Manke’s reputation for premium quality with YZKJ’s innovative technology. Built to the highest standards for long-lasting performance.

• Dual Button Smart Control – Two independent buttons for separate control of LED light and mirror defogger. Intuitive and easy to use for the whole family.

• Selectable Color Mode – One OR Three Color – Versatile operating mode to suit your preference. Use as a simple single-color switch or switch to three-color mode for multiple lighting options. Best of both worlds in one unit!

• Three-Color Temperature Control (in 3-color mode) – Choose between Warm (3000K), Natural (4500K), and Cool (6500K) white light. Perfect for creating different moods and for accurate makeup application.

• Digital Time & Temperature Display – Built-in LCD/LED display shows current time and room temperature. Adds functionality and a modern touch to your bathroom mirror. Perfect for checking time and temperature while getting ready. Switch between °C and °F.

• Built-in Defogger Control – Dedicated right button for mirror defogger. Keep your mirror clear from steam and fog during hot showers. Simple and effective on/off operation.

• Inductive Touch Technology – Advanced inductive sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick). Reliable performance even with gloves or wet hands.

• 60W Power Capacity – Handles up to 60W LED load at 12V output (5A). Perfect for medium to large bathroom mirrors, vanity installations, and mirrors with good LED density.

• Stepless Dimming 0-100% – Smooth brightness adjustment for any color temperature. Tap left button to turn on/off, touch and hold to dim up and down. Create the perfect ambiance for any time of day.

• Color Temperature Cycling (in 3-color mode) – Double tap left button to cycle through three color temperatures. Find the perfect lighting for any activity.

• Memory Function – Remembers your last color temperature and brightness setting. No need to readjust every time you turn on the light.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Compact All-in-One Design – Compact footprint combining controller, display, and defogger control in one unit. Fits easily behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• Manke & YZKJ Quality – Premium collaboration bringing you the best of both brands.

Technical Specifications

Electrical
• Model: YZKJ-B3-TMOC
• Brand: Manke & YZKJ Collaboration
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Output Current: 5A max
• Output Power: 60W max
• Dimming Range: 0-100% stepless
• Color Modes: Selectable Single Color OR Three Color (3000K/4500K/6500K)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last color and brightness

Display Features
• Display Type: Digital LCD/LED
• Time Display: 12/24 hour format (selectable)
• Temperature Display: °C / °F selectable
• Temperature Range: -40°F to 167°F (-40°C to 75°C)
• Accuracy: ±1°C / ±2°F

Physical
• Dimensions: 3.4″ × 2.0″ × 1.0″ (86 × 51 × 25mm) approx.
• Weight: 88g (3.1 oz)
• Color: Black / White (specify available options)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Inductive touch sensor
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass, works with wet hands

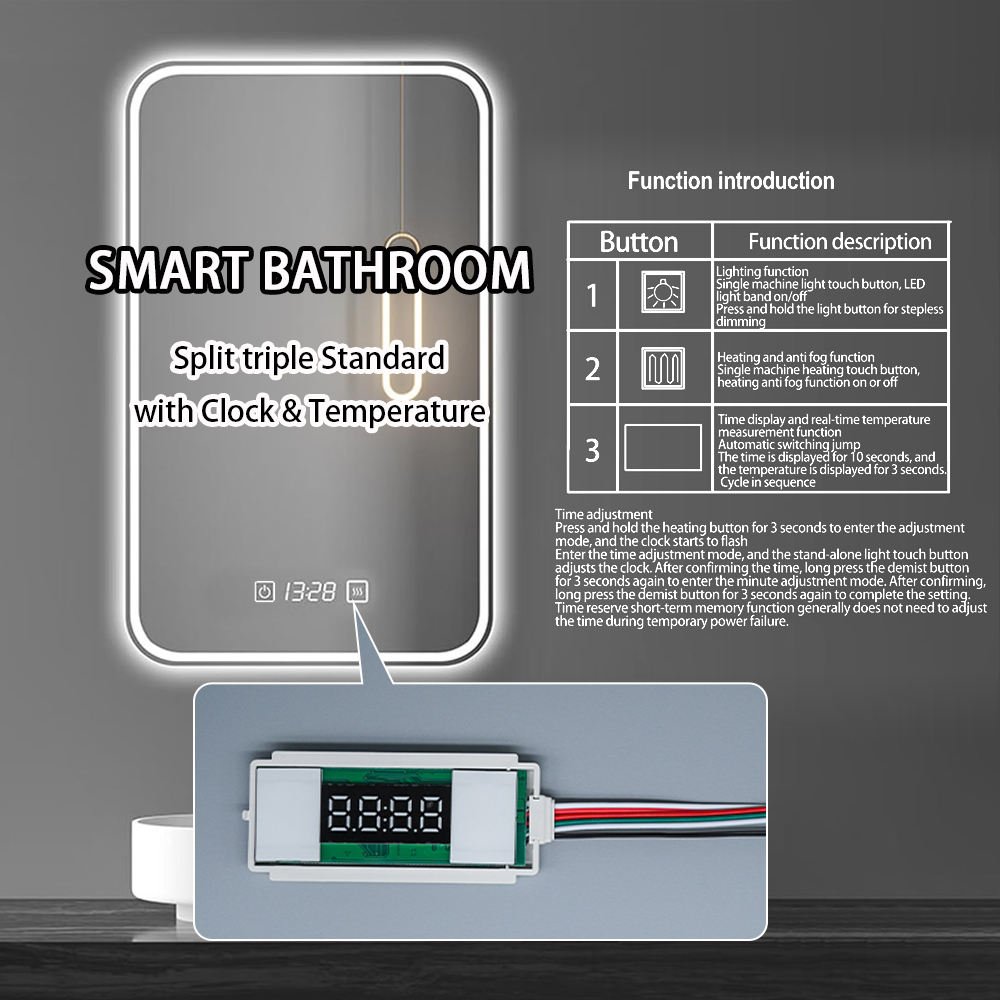

Button Functions
• Left Button: LED light control
– Single tap: Turn ON/OFF
– Touch & hold: Stepless dimming (0-100%)
– Double tap: Cycle through color temperatures (in three-color mode)
• Right Button: Defogger control
– Single tap: Turn ON/OFF
• Display: Shows time and temperature continuously when unit is powered

Mode Selection
• Single Color Mode: Operates as simple one-color dimmer
• Three Color Mode: Enables color temperature cycling with double tap
• Mode Change Method: (Specify, e.g., long press combination or dip switch)

Perfect For: Medium to large bathroom mirrors, LED vanity mirrors, backlit mirrors, mirror cabinets, and any installation where premium quality with versatile color options, time/temperature display, and defogger control is desired.

Package Includes

• 1x YZKJ-B3-TMOC All-in-One Unit – Integrated dual button switch with time/temperature display, selectable one/three-color control, and defogger
