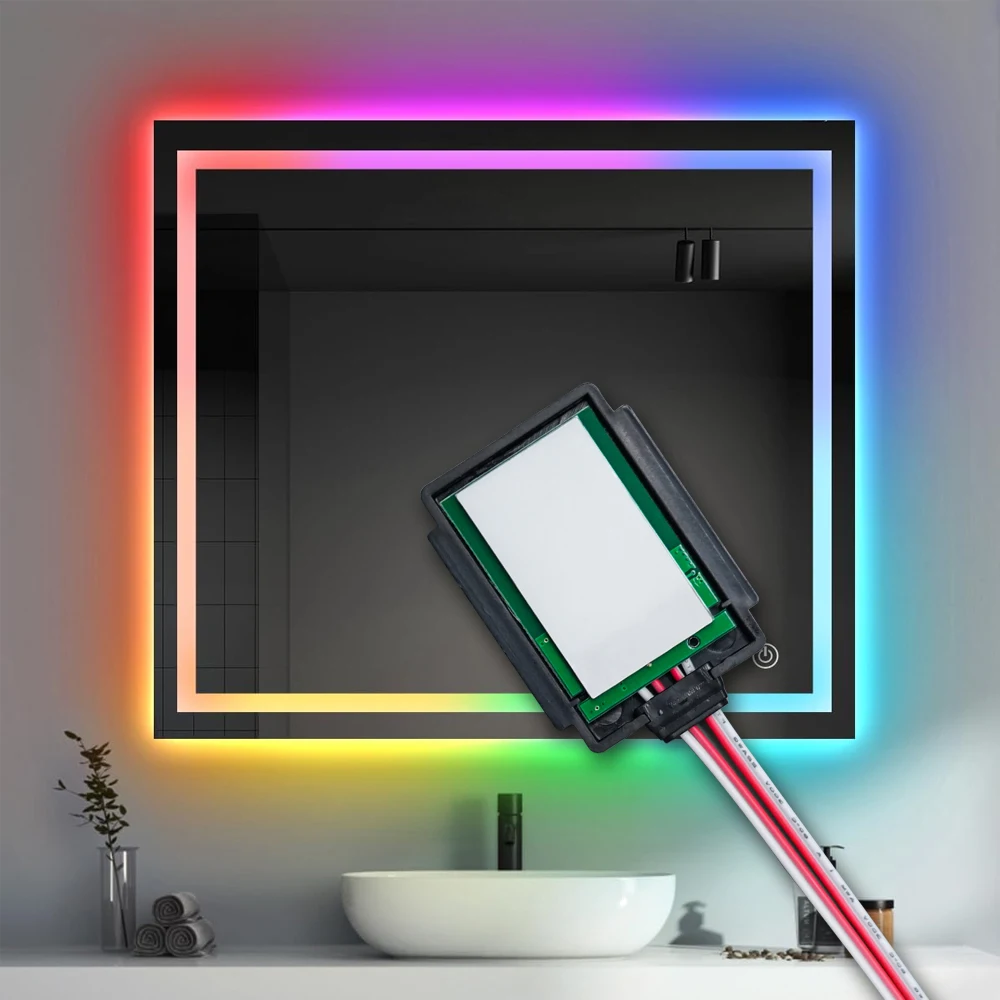

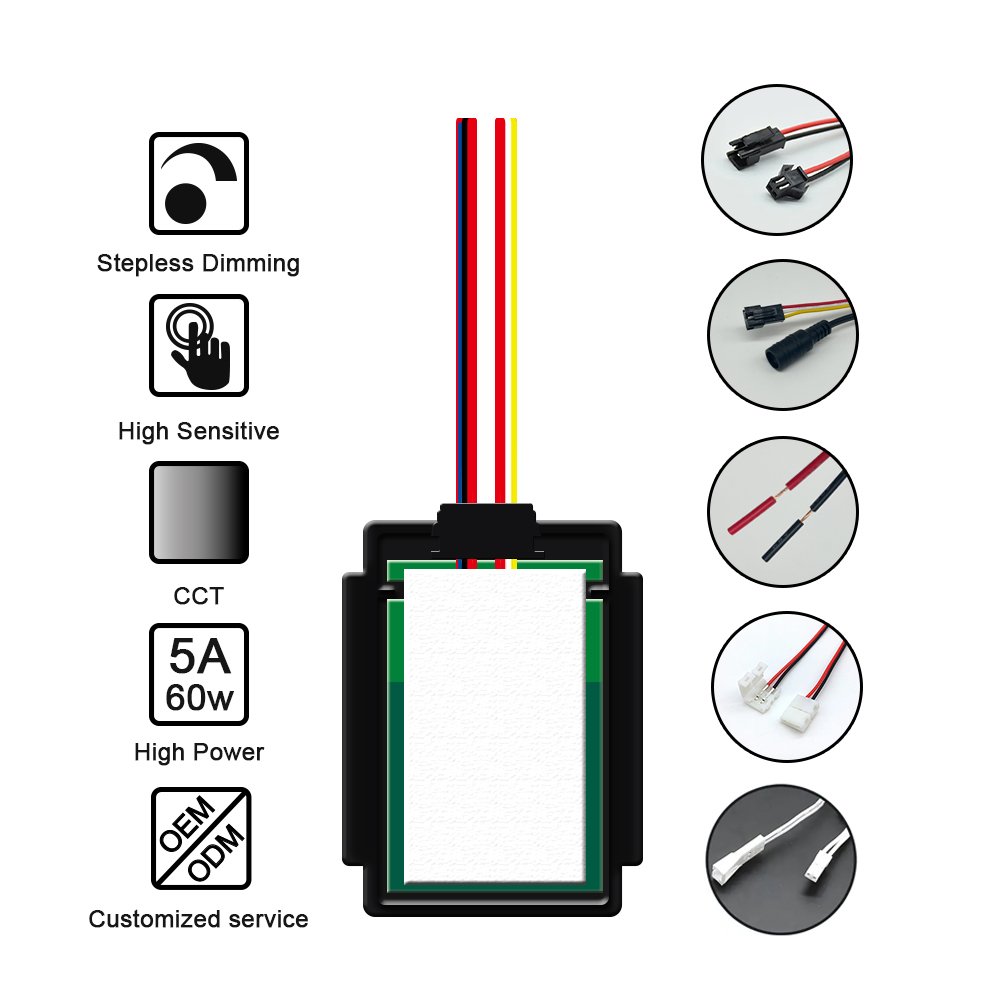

YZKJ-F1T-OC RGB 60W LED Touch Sensor Module 12V 5A DC One-Button Control Switch Inductive Switches with Pad Mirror

Upgrade your bathroom mirror with this YZKJ-F1T-OC RGB 60W LED Touch Sensor Module, specially designed for smart LED mirrors, RGB backlit mirrors, and mirror cabinets with defogger pad.

This advanced touch module features RGB color control with one-button operation, allowing you to create millions of vibrant colors for your mirror lighting. Includes mirror defogger pad for anti-fog functionality.

With one-button touch control, it supports:

• RGB color changing (millions of colors)
• On/Off function for LED light
• Stepless dimming (0-100%)
• Mirror defogger control
• Memory function – remembers last color and brightness

Key Features

• RGB Color Control – Create millions of vibrant colors for your mirror lighting. Perfect for mood lighting, bathroom ambiance, or decorative effects. Cycle through colors with simple touch.

• One-Button Smart Control – Single button controls all functions:
– Tap: On/Off
– Touch & Hold: Stepless dimming
– Double Tap: Cycle through RGB colors
– Triple Tap: Defogger on/off

• Included Mirror Defogger Pad – Complete kit includes defogger pad to keep your mirror clear from steam and fog during hot showers.

• 60W Power Capacity – Handles up to 60W total load at 12V (5A). Powerful enough for most RGB mirror installations.

• Inductive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Stepless Dimming 0-100% – Smooth brightness adjustment for any RGB color. Create the perfect ambiance for any time of day.

• Memory Function – Remembers your last RGB color and brightness setting. No need to readjust every time.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Ultra-Compact Module Design – Small footprint for easy installation behind mirror. Module size: 1.8″ × 1.2″ × 0.4″.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation) for the touch sensor.

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-F1T-OC
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Max Power: 60W (5A at 12V)
• Dimming Range: 0-100% stepless
• RGB Control: Millions of colors
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last color and brightness

Physical
• Module Dimensions: 1.8″ × 1.2″ × 0.4″ (45 × 30 × 10mm)
• Sensor Panel Dimensions: 1.2″ × 0.8″ × 0.2″ (30 × 20 × 5mm)
• Defogger Pad Size: 4″ × 6″ (100 × 150mm) (standard size)
• Total Weight: 45g (1.6 oz)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Defogger Specifications
• Power Consumption: 15-20W
• Heating Element: Even heat distribution
• Activation: Triple tap button
• Auto Shut-off: 30/60/90 minute timer (if applicable)

RGB Color Control
• Color Modes: Millions of RGB colors
• Color Cycle: Smooth transition through color spectrum
• Static Colors: Choose and hold any color
• Color Change Method: Double tap button to cycle

Perfect For: RGB backlit bathroom mirrors, color-changing vanity mirrors, spa bathrooms, modern home decor, and decorative lighting projects.

Package Includes

• 1x YZKJ-F1T-OC RGB 60W LED Touch Sensor Module
