YZKJ-F1T-TC 12V 5A 60W LED Smart Single Touch Dimmer Switch Capacitive Sensor Inductive Switches for Bathroom Mirror

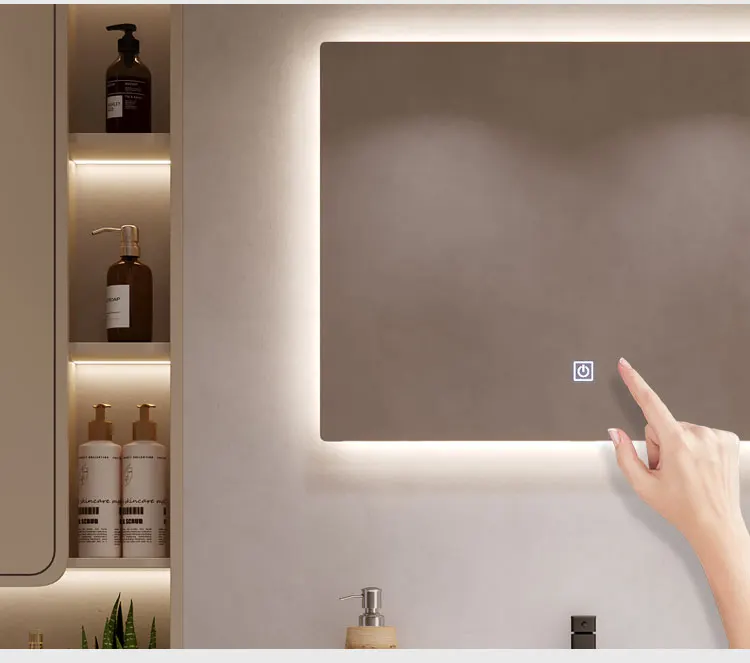

Upgrade your bathroom mirror with this YZKJ-F1T-TC 12V 5A 60W LED Smart Single Touch Dimmer Switch, specially designed for smart LED mirrors, vanity mirrors, and mirror cabinets.

This advanced touch switch features both capacitive sensor and inductive switch technology, allowing smooth and sensitive control directly through mirror glass (1-6mm thickness supported).

With single-key touch control, it supports:

• On/Off function
• Stepless dimming (0-100%)
• Memory function – remembers last brightness setting
• Compatible with all 12V LED mirror lights

Key Features

• Dual Sensor Technology – Combines capacitive sensor and inductive switch for reliable, responsive touch control. Works perfectly through glass and acrylic (1-6mm thick).

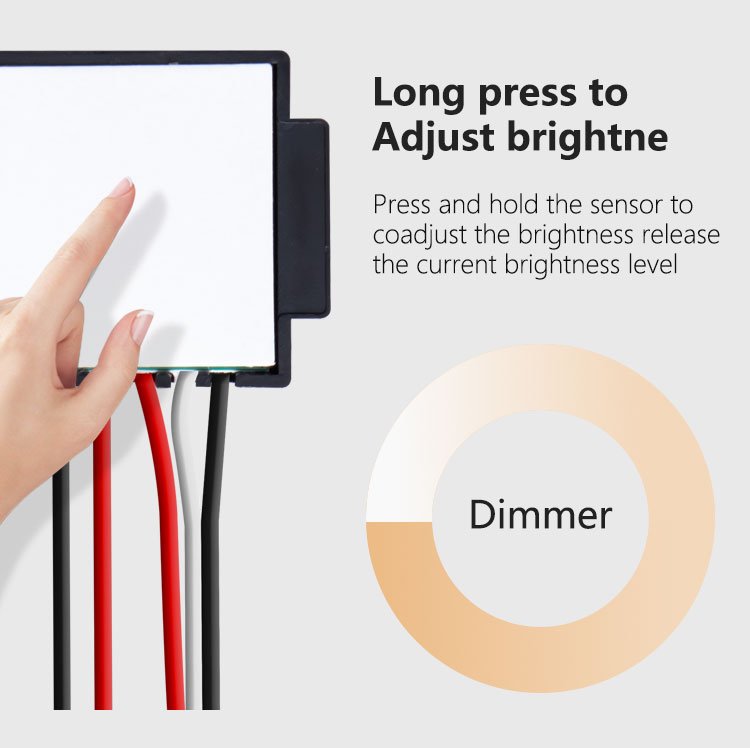

• Stepless Dimming 0-100% – Smooth brightness adjustment. Tap once to turn on/off. Touch and hold to dim up and down. Create perfect ambiance for any time of day.

• Memory Function – Remembers your last brightness setting. No need to readjust every time you turn on the light.

• 60W Power Capacity – Handles up to 60W LED load at 12V (5A). Compatible with LED strips, panels, bars, and mirror lights.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Ultra-Compact Design – Small footprint: 1.8″ × 1.2″ × 0.4″ (45mm × 30mm × 10mm). Fits easily behind any mirror.

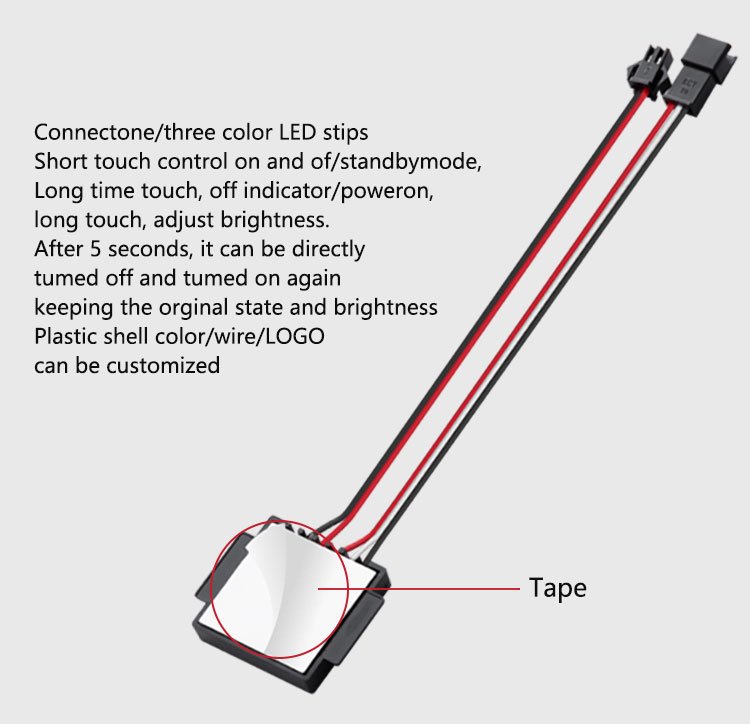

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical

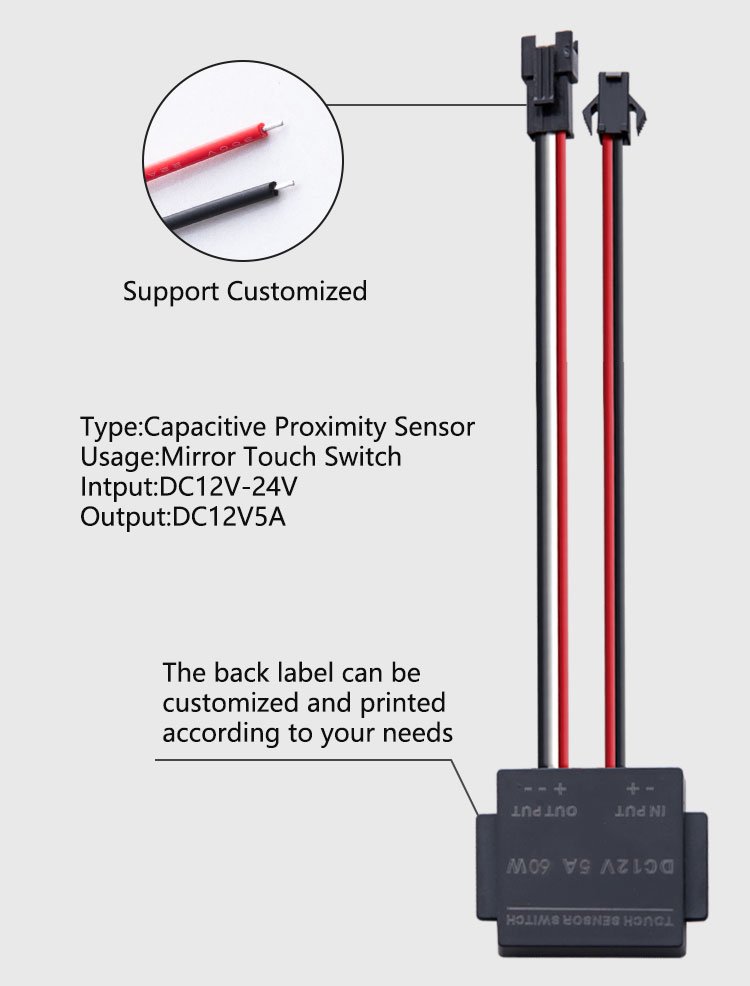

• Model: YZKJ-F1T-TC
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Max Power: 60W (5A at 12V)
• Dimming Range: 0-100% stepless
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last brightness

Physical
• Dimensions 1.8″ × 1.2″ × 0.4″
• 45mm × 30mm × 10mm
• 4.5cm × 3cm × 1cm

Compact design – easily fits behind any mirror!
• Weight: 20g (0.63 oz)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Capacitive + Inductive dual sensor
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass

Perfect For: Bathroom mirrors, LED vanity mirrors, backlit mirrors, mirror cabinets, and all 12V mirror lighting projects.

Package Includes

• 1x YZKJ-F1T-TC 12V 5A 60W LED Smart Single Touch Dimmer Switch
