YZKJ-F2-FOCT double touch switch one color version antifog 5A-20A 150W 12V

Upgrade your bathroom mirror with this YZKJ-F2-FOCT Double Touch Switch One Color Version with Antifog, specially designed for large LED mirrors, anti-fog mirrors, and mirror cabinets requiring higher power capacity.

This advanced double touch switch features one-color control with adjustable current from 5A to 20A, allowing you to handle powerful LED installations up to 150W at 12V. Perfect for large mirrors and commercial applications.

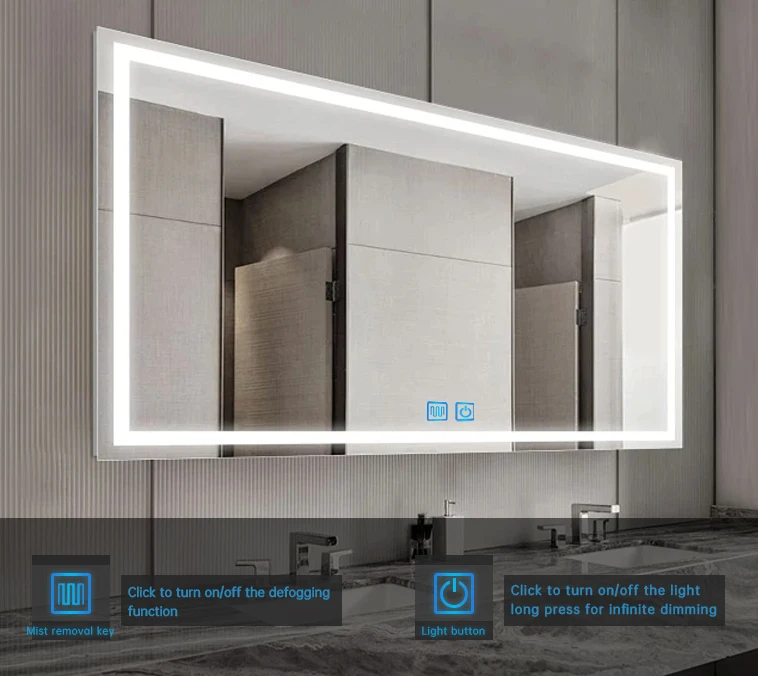

With double-key touch control, it supports:

• Left key: LED light On/Off and stepless dimming (0-100%)
• Right key: Mirror defogger On/Off with timer function
• One-color fixed temperature (specify color, e.g., 4000K natural white)
• Memory function – remembers last brightness setting
• Adjustable current: 5A to 20A (150W max at 12V)

Key Features

• Double Touch Control – Two independent buttons for separate control of LED light and mirror defogger. Intuitive and easy to use for the whole family.

• High Power Capacity – 150W – Handles up to 150W LED load at 12V with adjustable current from 5A to 20A. Perfect for large mirrors, commercial installations, and high-power LED lighting.

• Built-in Antifog Defogger Control – Dedicated button for mirror defogger with timer function. Keep your mirror clear from steam and fog during hot showers. Adjustable timer settings for energy efficiency.

• Stepless Dimming 0-100% – Smooth brightness adjustment for LED light. Tap left key to turn on/off, touch and hold to dim up and down.

• One-Color Fixed Temperature – Consistent color temperature (choose: 3000K warm / 4000K natural / 6500K cool) for reliable, professional lighting.

• Memory Function – Remembers your last brightness setting. No need to readjust every time you turn on the light.

• Adjustable Current (5A-20A) – Flexible current adjustment to match your specific LED load requirements. Can be set from 5A up to 20A maximum.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Ultra-Compact Design – Dimensions: 4.2″ × 1.2″ × 0.5″ (107 × 31 × 13mm). Compact enough for easy installation behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years of daily use.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-F2-FOCT
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Max Power: 150W (adjustable current 5A-20A)
• Current Range: 5A to 20A adjustable
• Dimming Range: 0-100% stepless
• Color Temperature: Fixed one-color (specify: 3000K/4000K/6500K)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last brightness

Physical
• Dimensions: 4.2″ × 1.2″ × 0.5″ (107 × 31 × 13mm)
• Weight: 40g (1.4 oz)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Button Functions
• Left Button: LED light control – Tap on/off, touch & hold dimming
• Right Button: Defogger control – Tap on/off, touch & hold for timer settings
• Timer Options: 30/60/90 minutes auto shut-off (configurable)

Current Adjustment
• Minimum Setting: 5A (60W at 12V)
• Maximum Setting: 20A (150W at 12V)
• Adjustment Method: Internal potentiometer or dip switches (refer to manual)
• Protection: Overload protection built-in

Package Includes

• 1x YZKJ-F2-FOCT Double Touch Switch – Main control unit with two buttons
