YZKJ-F2-FOCT double touch switch one color version antifog 5A-20A 150W 12V

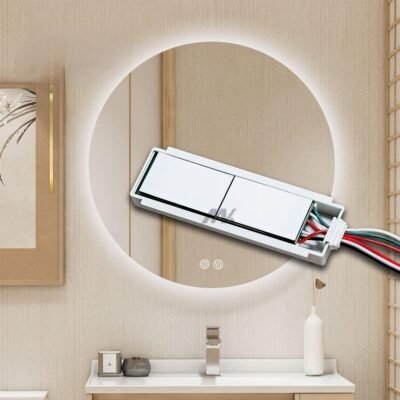

Upgrade your bathroom mirror with this YZKJ-F2-FTCT Double Touch Switch Three Color Version with Antifog, specially designed for large LED mirrors, anti-fog mirrors, and mirror cabinets requiring higher power capacity with color temperature control.

This advanced double touch switch features three-color temperature control with adjustable current from 5A to 20A, allowing you to handle powerful LED installations up to 150W at 12V. Perfect for large mirrors, commercial applications, and professional installations.

With double-key touch control, it supports:

• Left key: LED light On/Off, stepless dimming (0-100%), and color temperature cycling
• Right key: Mirror defogger On/Off with timer function
• Three color temperatures: Warm (3000K), Natural (4500K), Cool (6500K)
• Memory function – remembers last color and brightness setting
• Adjustable current: 5A to 20A (150W max at 12V)

Key Features

• Double Touch Control – Two independent buttons for separate control of LED light and mirror defogger. Intuitive and easy to use for the whole family.

• Three-Color Temperature Control – Choose between Warm (3000K), Natural (4500K), and Cool (6500K) white light. Perfect for creating different moods and for accurate makeup application.

• High Power Capacity – 150W – Handles up to 150W LED load at 12V with adjustable current from 5A to 20A. Perfect for large mirrors, commercial installations, and high-power LED lighting.

• Built-in Antifog Defogger Control – Dedicated button for mirror defogger with timer function. Keep your mirror clear from steam and fog during hot showers. Adjustable timer settings for energy efficiency.

• Stepless Dimming 0-100% – Smooth brightness adjustment for LED light. Tap left key to turn on/off, touch and hold to dim up and down.

• Color Temperature Cycling – Double tap left button to cycle through three color temperatures. Find the perfect lighting for any activity.

• Memory Function – Remembers your last color temperature and brightness setting. No need to readjust every time you turn on the light.

• Adjustable Current (5A-20A) – Flexible current adjustment to match your specific LED load requirements. Can be set from 5A up to 20A maximum.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Ultra-Compact Design – Dimensions: 4.2″ × 1.2″ × 0.5″ (107 × 31 × 13mm). Compact enough for easy installation behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years of daily use.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-F2-FTCT
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Max Power: 150W (adjustable current 5A-20A)
• Current Range: 5A to 20A adjustable
• Dimming Range: 0-100% step less
• Color Temperatures: 3000K (Warm), 4500K (Natural), 6500K (Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last color and brightness

Physical
• Dimensions: 4.2″ × 1.2″ × 0.5″ (107 × 31 × 13mm)
• Weight: 42g (1.5 oz)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Button Functions
• Left Button: LED light control
– Single tap: On/Off
– Touch & hold: Step less dimming (0-100%)
– Double tap: Cycle through color temperatures (3000K → 4500K → 6500K)
• Right Button: Defogger control
– Single tap: On/Off
– Touch & hold: Cycle through timer settings (30/60/90 minutes)

Current Adjustment
• Minimum Setting: 5A (60W at 12V)
• Maximum Setting: 20A (150W at 12V)
• Adjustment Method: Internal potentiometer or dip switches (refer to manual)
• Protection: Overload protection built-in

Defogger Timer Options
• Mode 1: 30 minutes auto shut-off
• Mode 2: 60 minutes auto shut-off
• Mode 3: 90 minutes auto shut-off
• Manual override: Tap again to turn off anytime

Perfect For: Large bathroom mirrors, commercial installations, hotel bathrooms, spa facilities, high-power LED mirror installations, professional makeup mirrors, and applications requiring both color temperature control and heavy-duty defogger.

Package Includes

• 1x YZKJ-F2-FTCT Double Touch Switch – Main control unit with two buttons and three-color control
