YZKJ-SS-GM Hand Sweep Touch Switch For 3.5cm Thickness Wood Single Color Version 5A 60W 12V

Upgrade your wooden mirror frame or wooden cabinet with this YZKJ-SS-GM Hand Sweep Touch Switch, specially designed for 3.5cm thick wood surfaces. This innovative switch features hand sweep gesture control for touch-free operation on wooden panels, vanities, and furniture.

This specialized touch switch is engineered specifically for extra-thick wood applications (up to 3.5cm / 1.38 inches). It uses advanced hand sweep technology that detects gestures through wood, allowing you to control your lighting without any visible buttons or sensors on the surface.

With hand sweep gesture control, it supports:

• Hand sweep left-to-right: Turn ON
• Hand sweep right-to-left: Turn OFF
• Touch and hold (on wood surface): Stepless dimming (0-100%)
• Single color fixed temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool)
• Memory function – remembers last brightness setting
• DC12V input for flexible installation
• 60W power capacity for bright lighting

Key Features

• Designed for 3.5cm Thick Wood – This specialized switch is engineered specifically for wood surfaces up to 3.5cm (1.38 inches) thick. Perfect for wooden mirror frames, wood paneling, cabinets, and furniture where standard glass sensors won’t work.

• Hand Sweep Gesture Control – Revolutionary touch-free operation! Simply sweep your hand across the wood surface to control your lights. No visible buttons, no drilling through your beautiful wood.

• Stepless Dimming 0-100% – Smooth brightness adjustment. Touch and hold on the wood surface to dim up and down. Create the perfect ambiance for any time of day.

• Single Color Fixed Temperature – Consistent color temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool) for reliable, professional lighting. Simple and intuitive for everyday use.

• 60W Power Capacity – Handles up to 60W LED load at 12V (5A). Compatible with LED strips, panels, bars, and mirror lights.

• Invisible Installation – The sensor mounts behind your wood surface, completely invisible. No visible buttons, no unsightly holes – just clean, beautiful wood with magic touch control.

• Memory Function – Remembers your last brightness setting. No need to readjust every time you turn on the light.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind wood surfaces in humid conditions.

• Easy Installation – Simple wiring with pre-connected cables. Mounts behind your wood panel.

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative lighting solutions.

Technical Specifications

Electrical

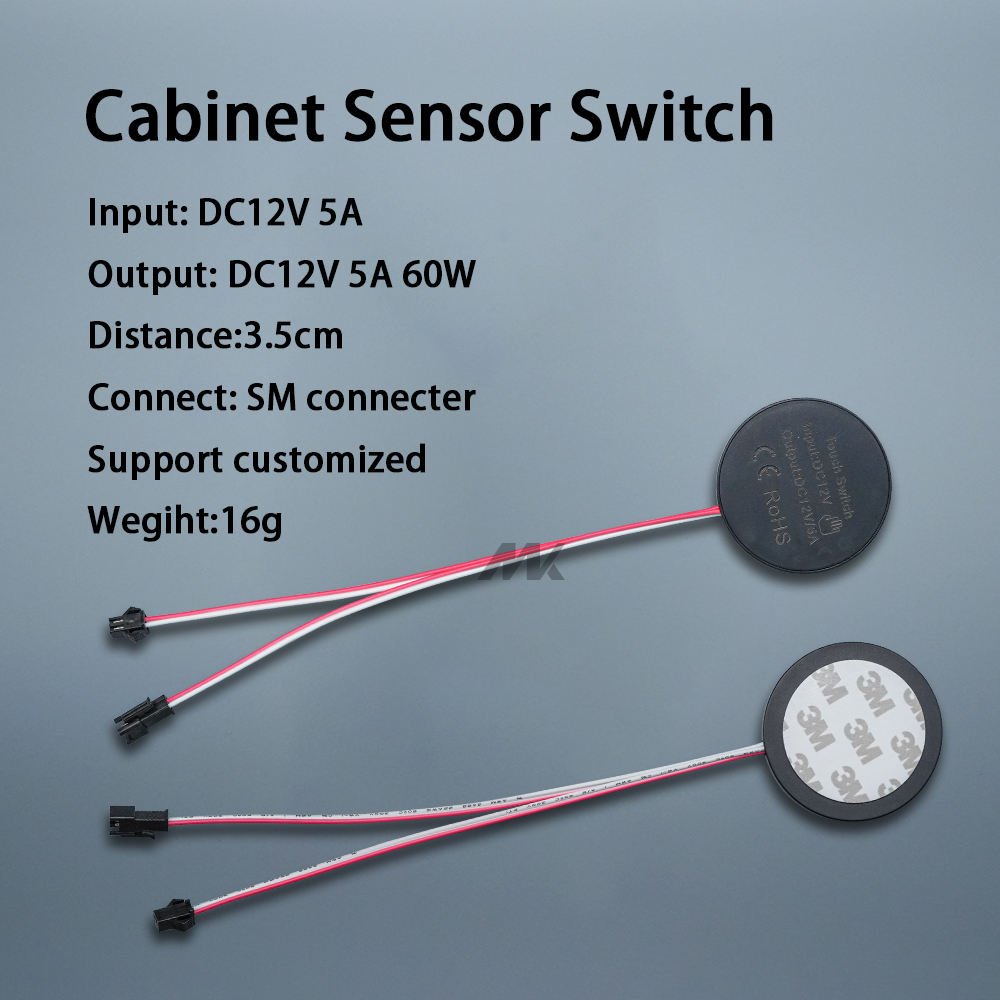

• Model: YZKJ-SS-GM
• Input Voltage: DC 12V
• Output Voltage: DC 12V
• Output Current: 5A max
• Output Power: 60W max
• Dimming Range: 0-100% stepless
• Color Temperature: One-color fixed (specify: 3000K Warm / 4000K Natural / 6500K Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last brightness

Physical
• Sensor Dimensions: 2.5″ × 1.5″ × 0.8″ (64 × 38 × 20mm) approx.
• Weight: 50g (1.76 oz)
• Material: Flame-retardant casing
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)

Wood Compatibility

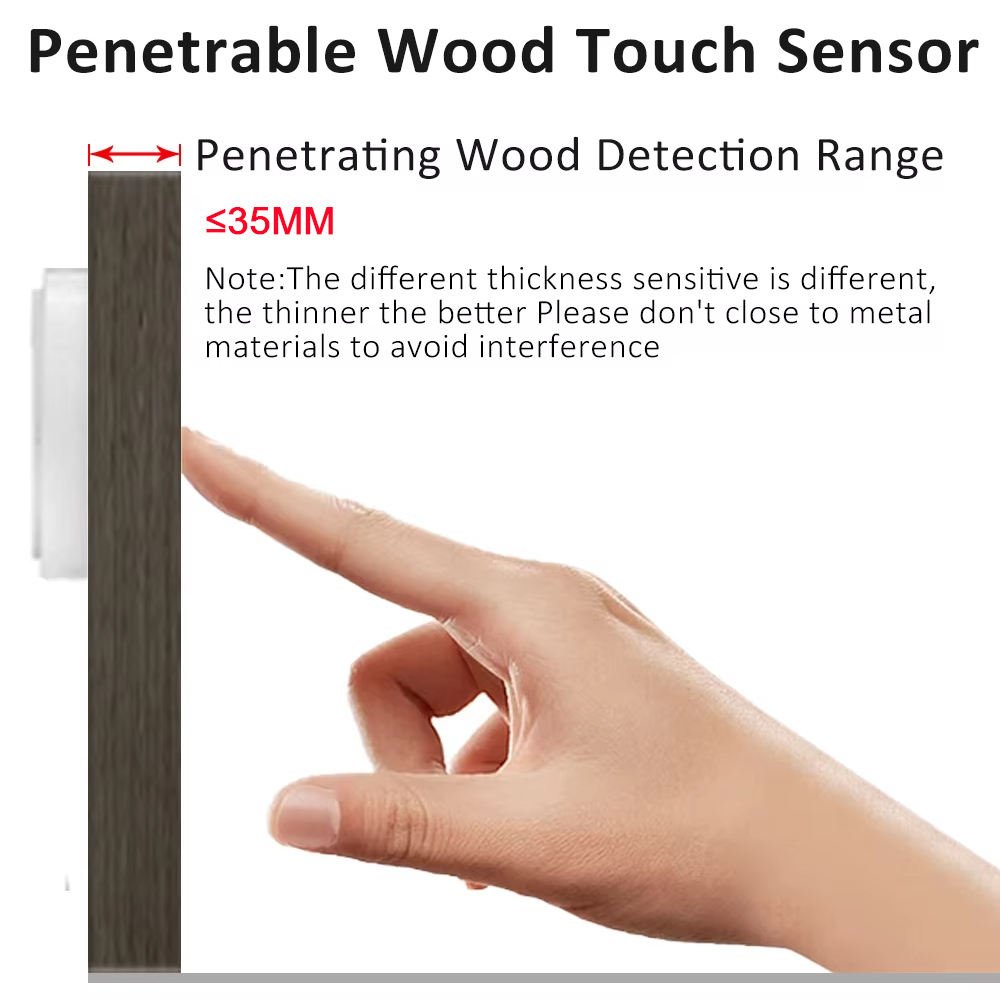

• Supported Wood Thickness: 3.5cm (1.38 inches) exactly
• Wood Types: Solid wood, plywood, MDF, particle board
• Sensing Through: Works through wood (not for glass/metal)
• Detection Area: Approximately 4″ × 4″ (10cm × 10cm) sweep zone

Gesture Control Functions
• Sweep Left to Right: Turn ON
• Sweep Right to Left: Turn OFF

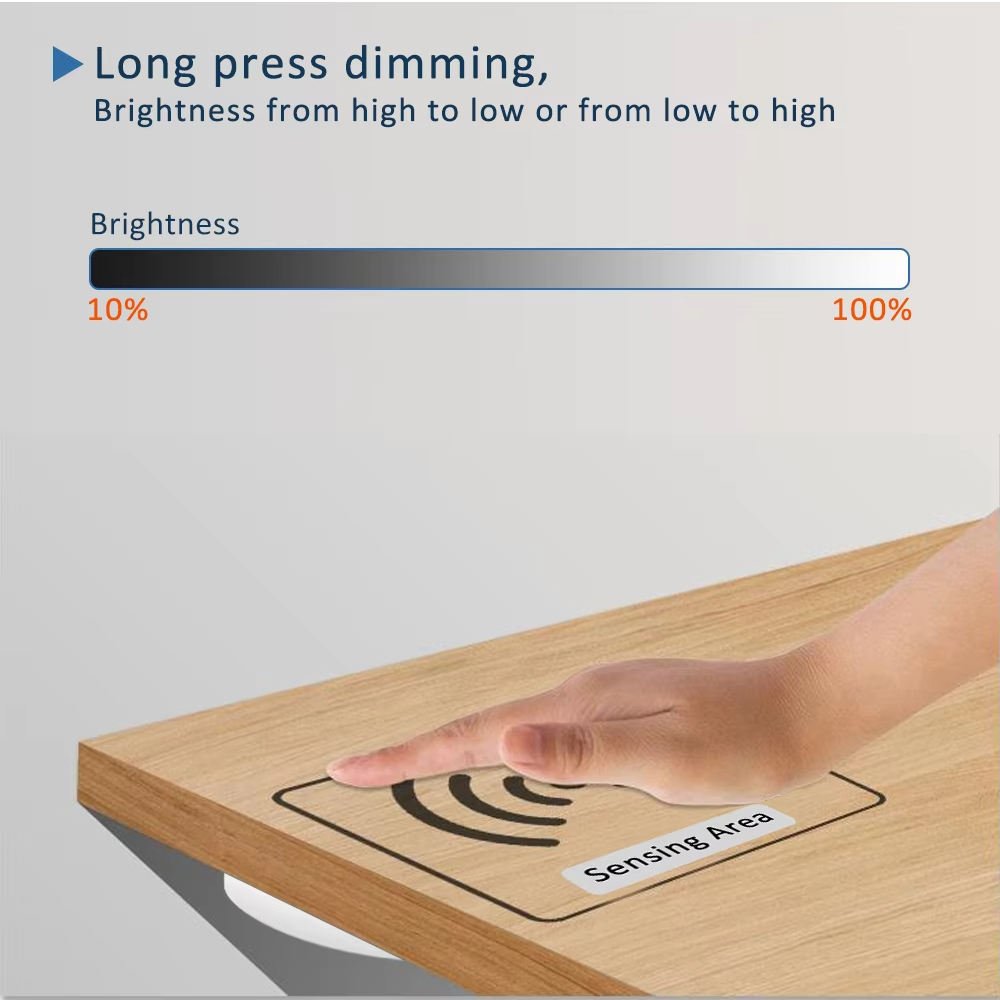

• Touch and Hold (on wood surface): Stepless dimming (0-100%)
• No visible buttons – completely invisible installation

Perfect For: Wooden mirror frames, wood-paneled walls, wooden cabinets, furniture with integrated lighting, wood vanities, and any wood surface where you want invisible, touch-free lighting control.

Package Includes

• 1x YZKJ-SS-GM Hand Sweep Sensor Unit – Main sensor for 3.5cm wood thickness
