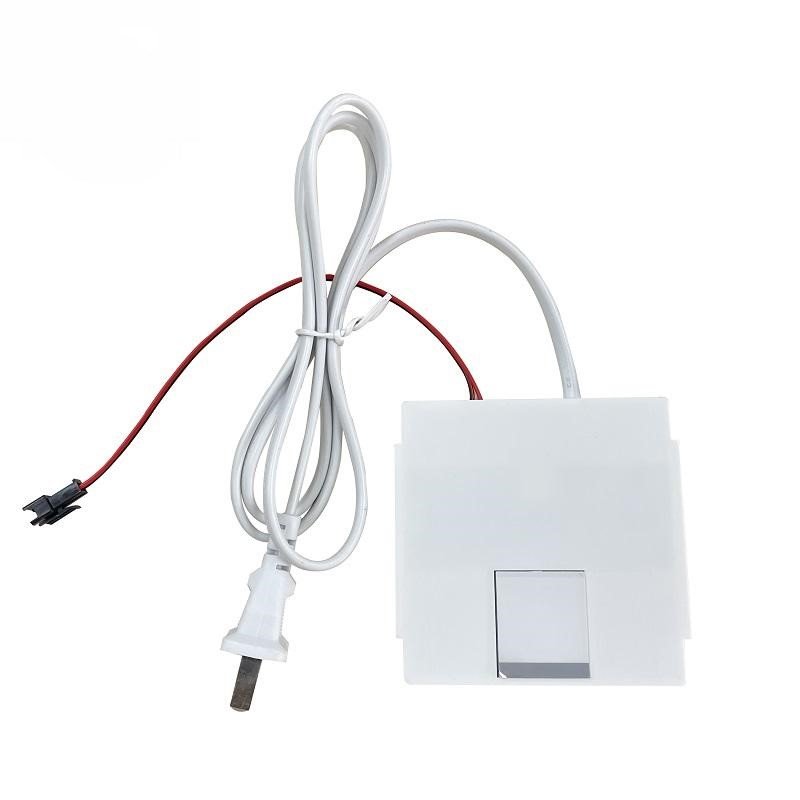

YZKJ-Y1-24OC Single Touch Switch One Color Version Power Driver 2A 24W 12V AC90-250V Led Light Switch Bathroom Smart Control Sensor Mirror Touch Switch

Upgrade your bathroom mirror with this YZKJ-Y1-24OC Single Touch Switch One Color Version with Built-in Power Driver, specially designed for smart LED mirrors, vanity mirrors, and mirror cabinets. This all-in-one unit features a high-power 24W built-in driver that works with universal AC90-250V input, eliminating the need for a separate LED driver.

This sleek and modern touch sensor switch features one-color temperature control with a single touch button, allowing simple and intuitive control over your mirror lighting. The built-in power driver accepts wide voltage input from AC90V to 250V, making it perfect for worldwide use including USA (120V) and European (230V) installations.

With single-key touch control and integrated power driver, it supports:

• On/Off function
• One fixed color temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool)
• Stepless dimming (0-100%)
• Memory function – remembers last brightness setting
• Built-in 24W power driver – no external driver needed!
• Universal AC input: 90-250V works worldwide
• Higher 24W capacity for brighter mirrors

Key Features

• Built-in 24W Universal Power Driver – No need for a separate LED driver! This all-in-one unit connects directly to your household power (AC90-250V). Delivers 24W of power at 12V (2A) for brighter mirror installations. Works perfectly with USA 120V and international 230V systems. Simplifies installation and saves space.

• Higher Power Capacity – 24W – Handles up to 24W LED load at 12V output (2A). Perfect for medium to large bathroom mirrors, brighter vanity installations, and mirrors with higher LED density.

• One-Color Fixed Temperature – Consistent color temperature (choose: 3000K Warm / 4000K Natural / 6500K Cool) for reliable, professional lighting. Simple and intuitive for everyday use.

• Single Touch Smart Control – One button controls all functions:
– Single tap: On/Off
– Touch & hold: Stepless dimming (0-100%)

• Stepless Dimming 0-100% – Smooth brightness adjustment. Create the perfect ambiance for any time of day – bright for makeup application, soft for relaxing baths.

• Memory Function – Remembers your last brightness setting. No need to readjust every time you turn on the light.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Ultra-Compact All-in-One Design – Small footprint combining controller and power driver in one unit. Fits easily behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-Y1-24OC
• Input Voltage: AC 90V – 250V (universal, works worldwide)
• Output Voltage: DC 12V (regulated)
• Output Current: 2A max
• Output Power: 24W max
• Dimming Range: 0-100% stepless
• Color Temperature: One-color fixed (specify: 3000K Warm / 4000K Natural / 6500K Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last brightness
• Frequency: 50/60Hz (auto-sensing)

Physical
• Dimensions: 2.6″ × 1.8″ × 0.8″ (66 × 46 × 20mm) approx.
• Weight: 70g (2.5 oz)
• Color: Black / White (specify available options)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Capacitive touch sensor
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass

Button Functions
• Single Button Control:
– Single tap: Turn ON/OFF
– Touch & hold: Stepless dimming (0-100%)

Perfect For: Medium to large bathroom mirrors, LED vanity mirrors, backlit mirrors, mirror cabinets, brighter mirror installations, and any application where higher brightness is desired. The built-in 24W driver provides more power for impressive illumination.

Package Includes

• 1x YZKJ-Y1-24OC All-in-One Unit – Integrated touch switch and 24W power driver with one-color control
