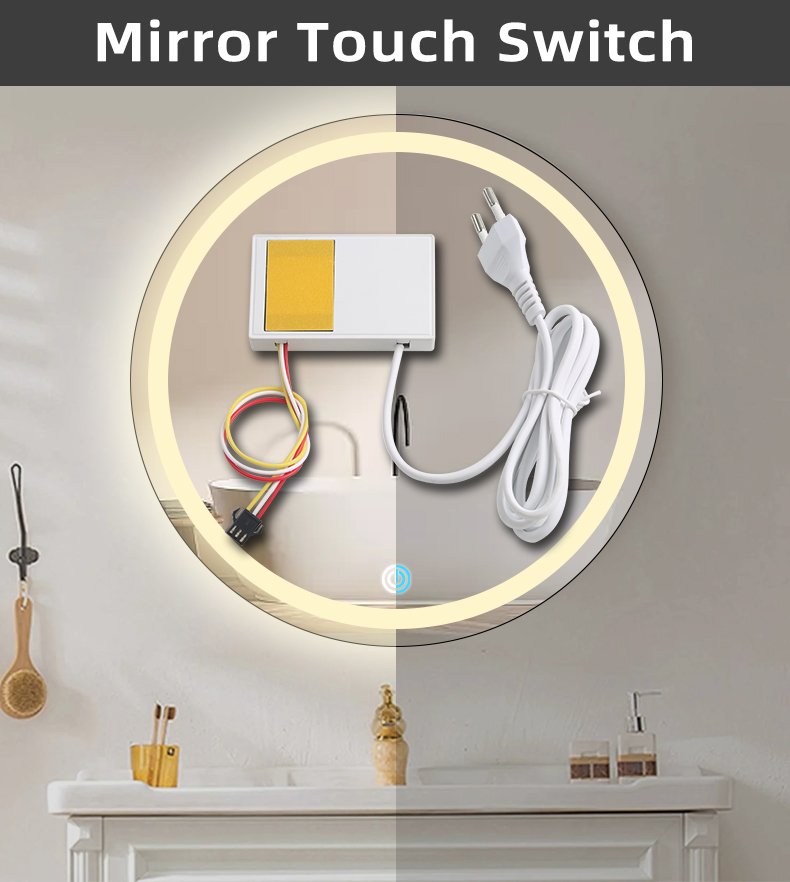

YZKJ-Y1-TC Single Touch Switch Three color version, Power driver 1A 12W 12V AC90-250V

Upgrade your bathroom mirror with this YZKJ-Y1-TC Single Touch Switch Three Color Version with Built-in Power Driver, specially designed for smart LED mirrors, vanity mirrors, and mirror cabinets. This all-in-one unit includes a built-in power driver that works with universal AC90-250V input, eliminating the need for a separate LED driver.

This sleek and modern touch sensor switch features three-color temperature control with a single touch button, allowing complete control over your mirror lighting. The built-in power driver accepts wide voltage input from AC90V to 250V, making it perfect for worldwide use including USA (120V) and European (230V) installations.

With single-key touch control and integrated power driver, it supports:

• On/Off function
• Three color temperatures: Warm (3000K), Natural (4500K), Cool (6500K)
• Stepless dimming (0-100%)
• Memory function – remembers last color and brightness setting
• Built-in power driver – no external driver needed!
• Universal AC input: 90-250V works worldwide

Key Features

• Built-in Universal Power Driver – No need for a separate LED driver! This all-in-one unit connects directly to your household power (AC90-250V). Works perfectly with USA 120V and international 230V systems. Simplifies installation and saves space.

• Three-Color Temperature Control – Choose between Warm (3000K), Natural (4500K), and Cool (6500K) white light. Perfect for creating different moods and for accurate makeup application.

• Single Touch Smart Control – One button controls all functions:
– Single tap: On/Off
– Touch & hold: Stepless dimming (0-100%)
– Double tap: Cycle through three color temperatures

• Stepless Dimming 0-100% – Smooth brightness adjustment for any color temperature. Create the perfect ambiance for any time of day.

• Memory Function – Remembers your last color temperature and brightness setting. No need to readjust every time you turn on the light.

• 12W Power Capacity – Handles up to 12W LED load at 12V output (1A). Perfect for small to medium bathroom mirrors and vanity installations.

• IP21 Water Resistant – Splash-proof design engineered for bathroom environments. Safe for use behind mirrors and in humid conditions.

• Capacitive Touch Technology – Advanced sensor responds to lightest touch. Works perfectly through glass and acrylic (1-6mm thick).

• Ultra-Compact All-in-One Design – Small footprint combining controller and power driver in one unit: 2.5″ × 1.8″ × 0.8″ (64 × 46 × 20mm). Fits easily behind any mirror.

• 2 Installation Options – 3M adhesive pad (no drilling) or mounting screws (permanent installation).

• All-Climate Operation – Works in -40°F to 167°F (-40°C to 75°C). Perfect for all USA climates.

• Long Lifespan – Rated for 100,000+ switching cycles. Built to last for years.

• YZKJ Quality – Reliable brand known for innovative mirror lighting solutions.

Technical Specifications

Electrical
• Model: YZKJ-Y1-TC
• Input Voltage: AC 90V – 250V (universal, works worldwide)
• Output Voltage: DC 12V (regulated)
• Output Current: 1A max
• Output Power: 12W max
• Dimming Range: 0-100% stepless
• Color Temperatures: 3000K (Warm), 4500K (Natural), 6500K (Cool)
• Standby Power: Less than 0.5W
• Memory Function: Yes – remembers last color and brightness
• Frequency: 50/60Hz (auto-sensing)

Physical
• Dimensions: 2.5″ × 1.8″ × 0.8″ (64 × 46 × 20mm)
• Weight: 65g (2.3 oz)
• Color: Black / White (specify available options)
• Protection Rating: IP21 (splash-proof)
• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Sensing Range: 1-6mm (works through glass/acrylic)

Sensor Technology
• Type: Capacitive touch sensor
• Response Time: Less than 100ms
• Touch Cycles: 100,000+ times
• Activation: Light touch through glass

Button Functions
• Single Button Control:
– Single tap: Turn ON/OFF
– Touch & hold: Stepless dimming (0-100%)
– Double tap: Cycle through color temperatures (3000K → 4500K → 6500K)

Perfect For: Bathroom mirrors, LED vanity mirrors, backlit mirrors, mirror cabinets, small to medium mirrors, and any installation where a separate power driver would be inconvenient. Saves space and simplifies wiring!

Package Includes

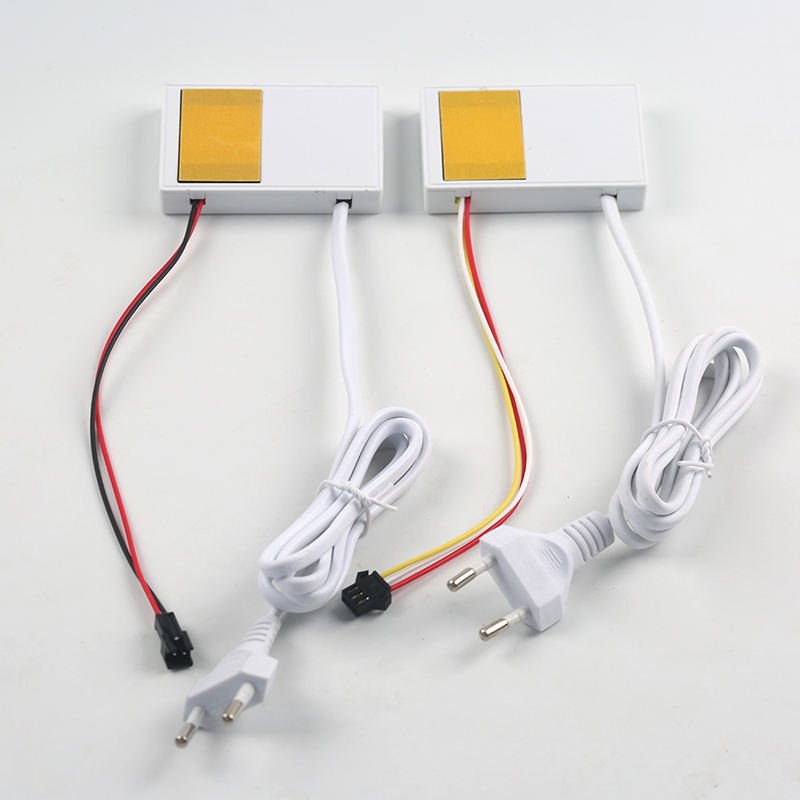

• 1x YZKJ-Y1-TC All-in-One Unit – Integrated touch switch and power driver with three-color control
