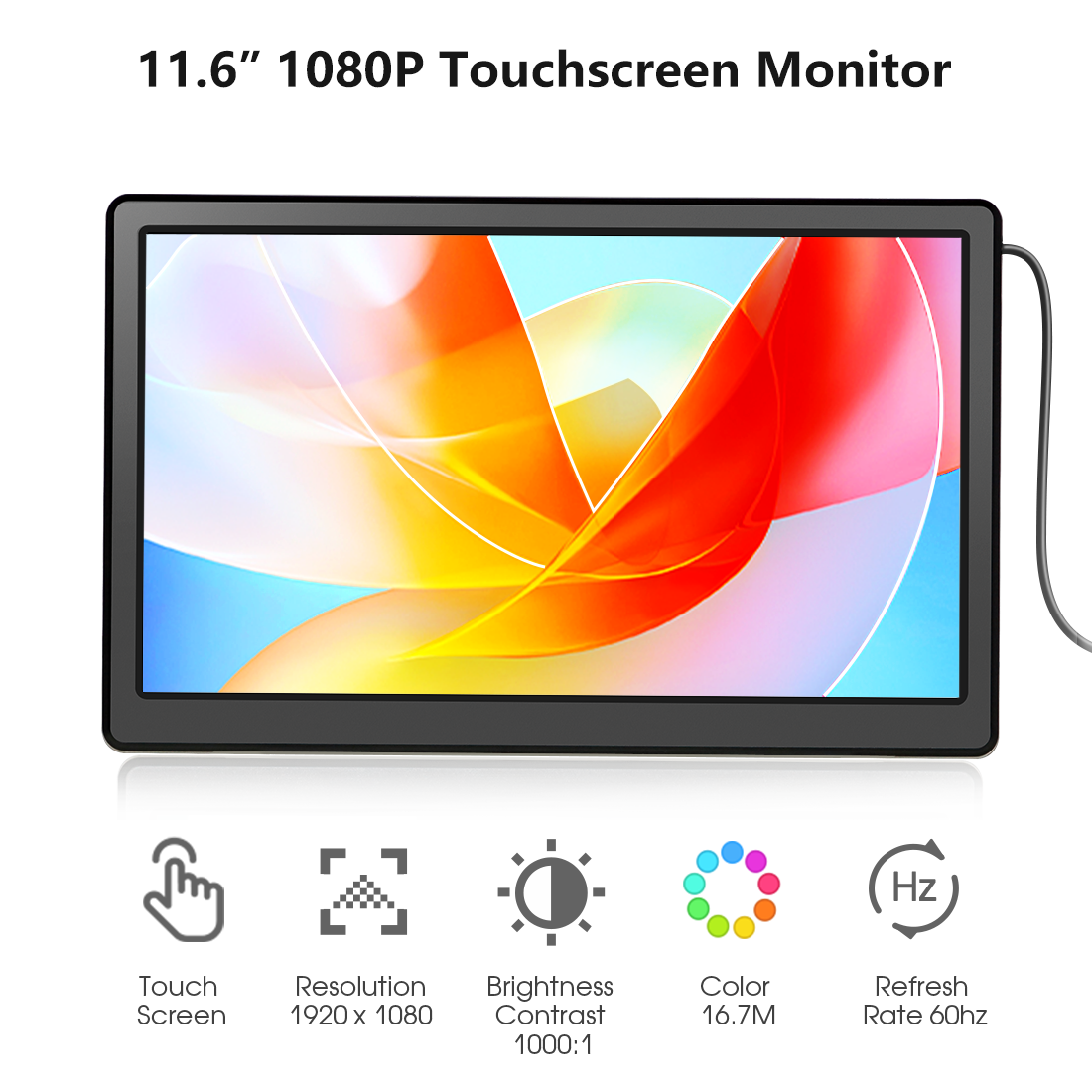

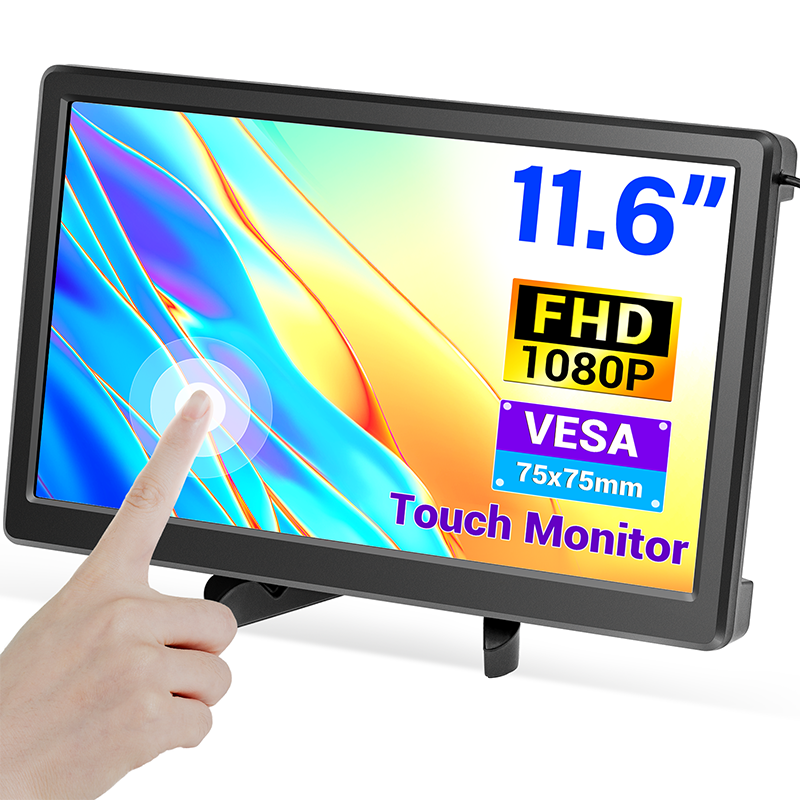

11.6 Inch Touchscreen 1920×1080 IPS Monitor compatible with Raspberry Pi, Jetson Nano, Beaglebone

Description

A different size from the SF101T, this 11.6″ Full HD portable monitor supports resolutions up to 1920×1080 for vibrant, crystal clear images. IPS technology delivers a revolutionary color experience. Supports 10-point touch, no additional driver is required, just connect the USB cable to a signal output device such as PC/Raspberry Pi to realize the touch screen function. Equipped with both HDMI-compatible and VGA ports, built-in high-quality speakers, and a 3.5mm headphone output jack, this 11.6 inch touch monitor offers versatile connectivity options and immersive audio.

It can be used with most devices with HDMI-compatible or VGA ports, and is compatible with Win 7 8 10 PC, Raspberry Pi 5/4/4B/3/3B, Jetson Nano, Beaglebone and other single-board computers, as well as industrial and medical equipment.

11.6-inch compact size, 75x75mm VESA wall mounting holes, making your space planning more flexible.

OEM customization requests can be discussed for projects.

Capactive 10-point touch

Supports 10-point capacitive touch with excellent accuracy and sensitivity.

Pairs Perfectly with Your Notebook

Pairs Perfectly with Your Notebook, adjusts to your needs.

Multiple connection methods

Two connection methods, you can use HDMI-compatible connection or VGA connection.

VESA mount supported

Supports VESA wall-mounted installation mode to save your space to the maximum extent.

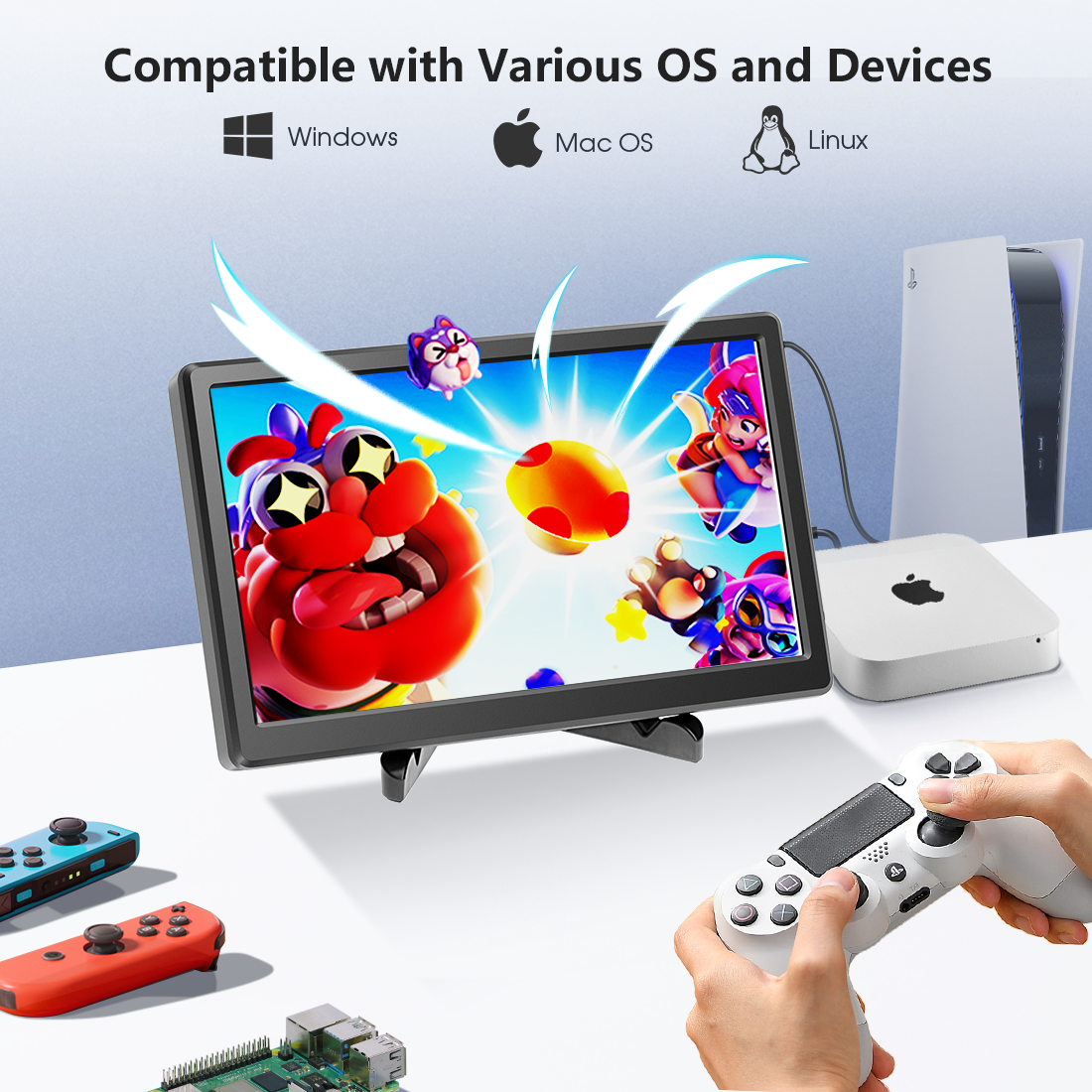

Wide compatibility

It can be compatible with various systems and devices such as Windows, Max, Linux, etc.

Multi-interface

Feature

• Full HD 1080P IPS Screen, up to 1920X1080 resolution,clear images and rich display colors.
• Multiple display methods, to meet different usage needs.
• Capacitive 10-point touch with excellent precision and sensitivity,no need to install the driver, just plug and play.
• Built-in dual speakers deliver high-quality audio quality.
• Flexible connectivity with HD and VGA ,compatible with PS4 XBOX360, Raspberry Pi, industrial equipment, car audio and video, car headrests, and medical equipment monitors.



Specification

• Screen Size: 11.6 inch
• Resolution: 1920*1080
• Touch: capacitive 10-point touch
• Color: 16.7M(bit)
• Viewing angle(single-sided):85°
• Backlight brightness: 220cd/m²
• Backlight Life: 3000H
• Brightness contrast: 1000/1
• Response time: 35ms
• Supported operating systems: Windows/MacOs/Linux
• Supported interfaces: 3.5mm headphone/HDMI-compatible interface/VGA/3.5mm audio input
• Operating environment range: -20-70℃
• Storage temperature: -30~80℃
• Overall dimensions: 282mmx177x30mm
• Display/touch area: 256.3×144.2mm
• Net Weight: 790g



Package List

• 1x 11.6 inch Touch Monitor
• 1x HDMI-compatible Cable
• 1x Power Supply
• 1x Stand
• 1x User Manual



Wiki & External links

• Manual
• CE Certificate
