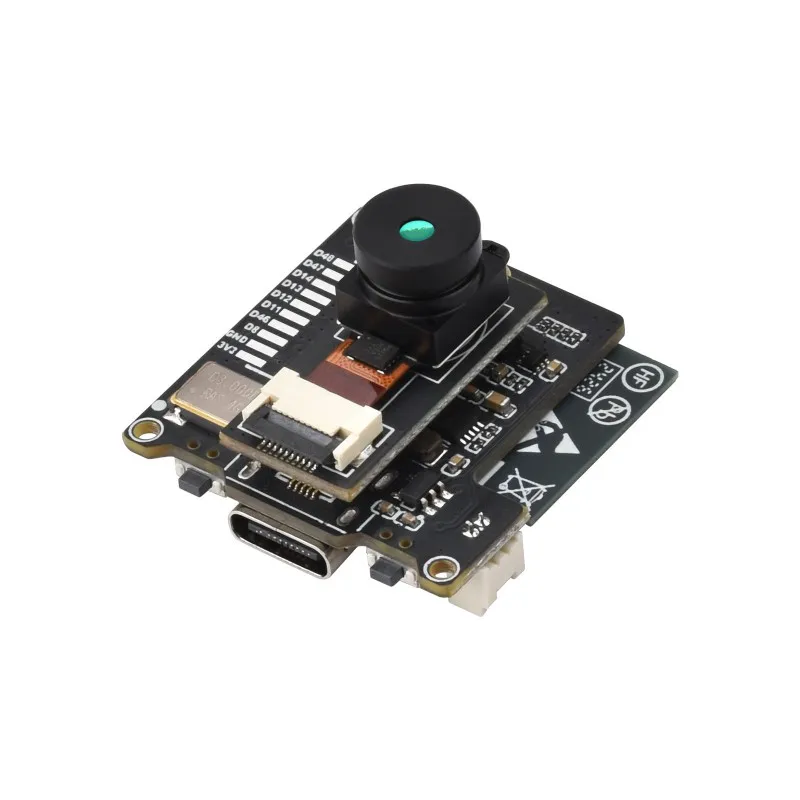

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV

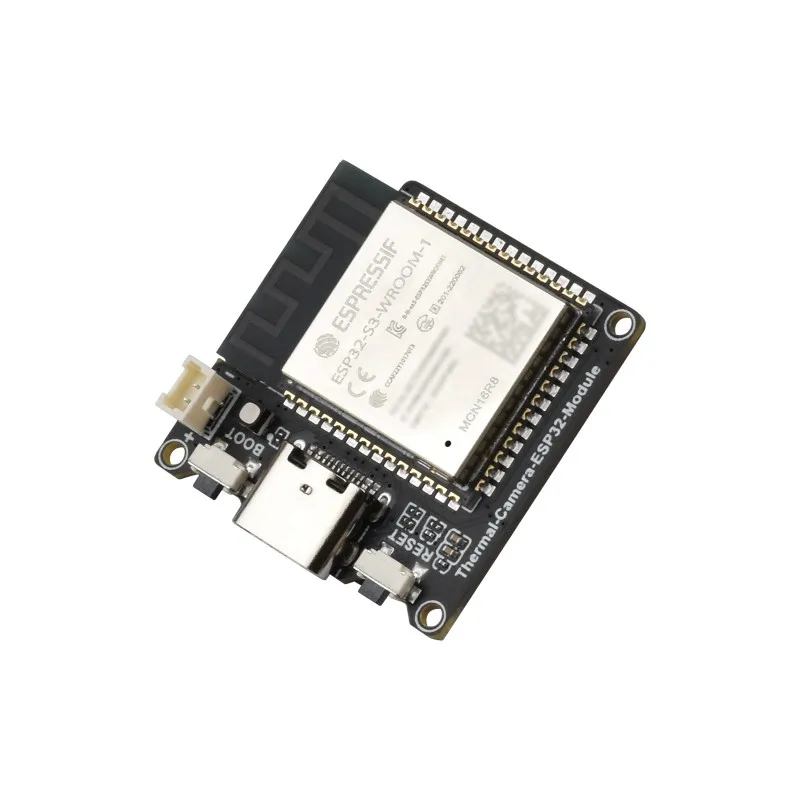

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV - Image 2

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV - Image 3

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV - Image 4

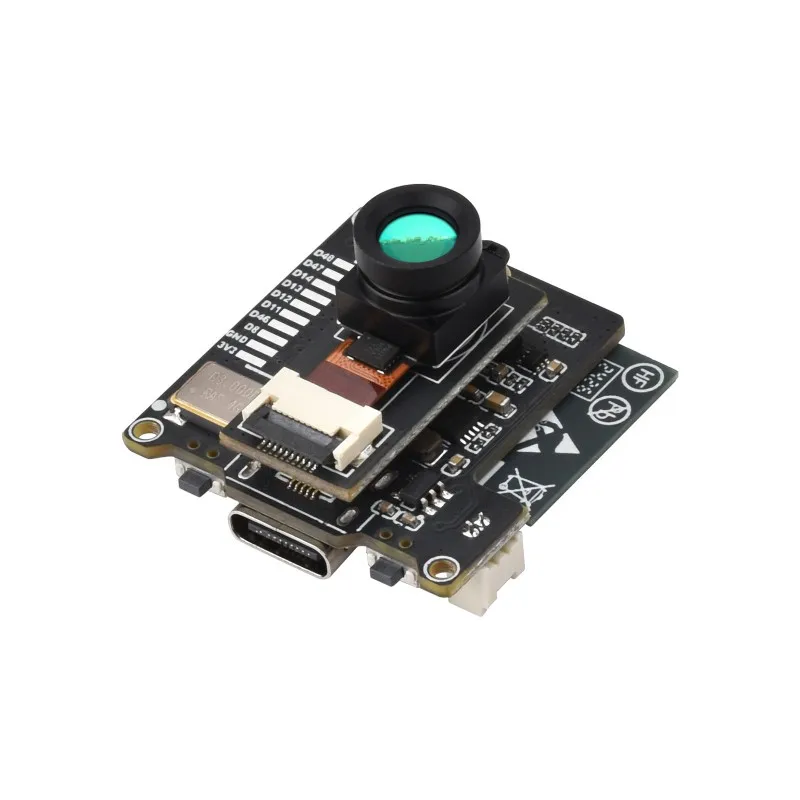

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV - Image 5

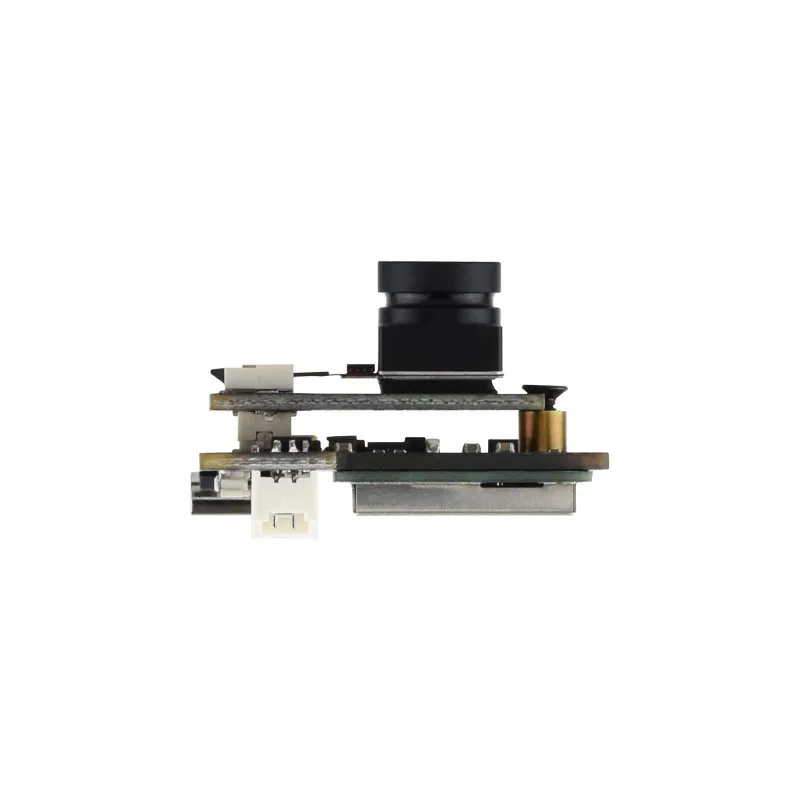

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV - Image 6

ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV

Name: ESP32-S3 IR Thermal Imaging Camera, Type-C Port, 80×62 Pixels IR Array, Options for 45° / 90° FOV
SKU: 8586
Availability: InStock

$96.99

SKU: N/A Category: Uncategorized Tags: ESP32, ESP32-S3, thermal imager

We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, Options for 45° / 90° FOV

ESP32-S3 IR Thermal Imaging Camera

80×62 Pixels IR Array, Options for 45° / 90° FOV

Version Options

Thermal-45 Camera ESP32 Module
Basic version: 45° FOV

Thermal-90 Camera ESP32 Module
Wide angle version: 90° FOV

Features

This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80×62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.

Key features include:

Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, enhancing device compatibility and user convenience

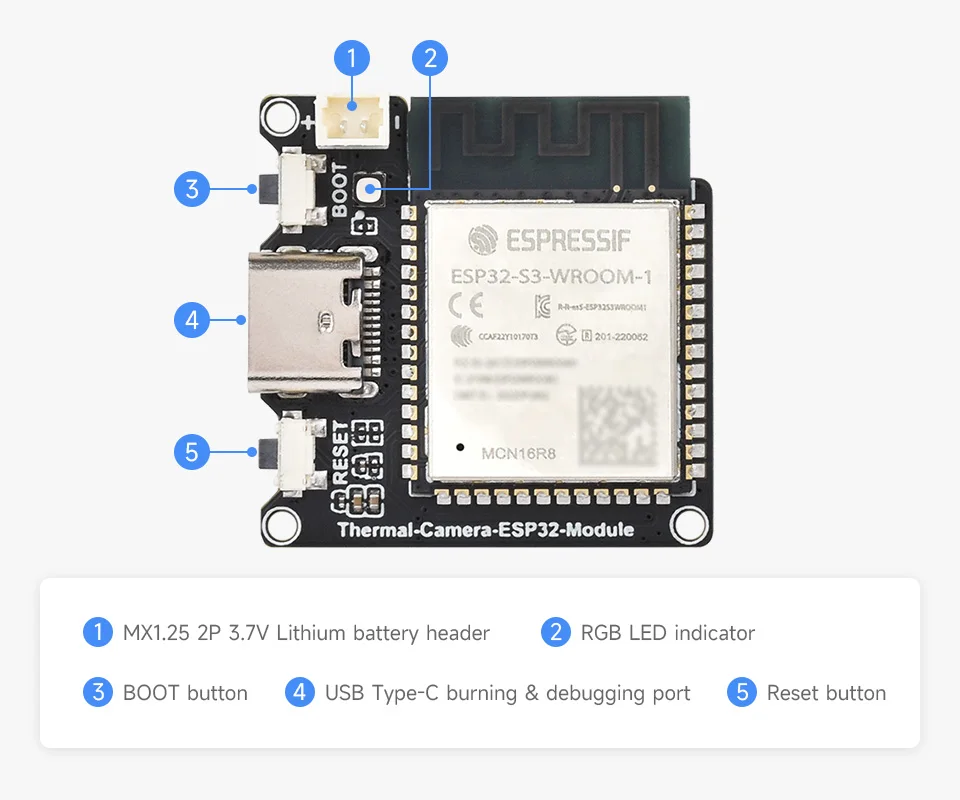

Onboard RGB LED indicator for real-time monitoring the operating status of the module
Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time
Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
Compact size design, more space-saving, making it ideal for embedded applications

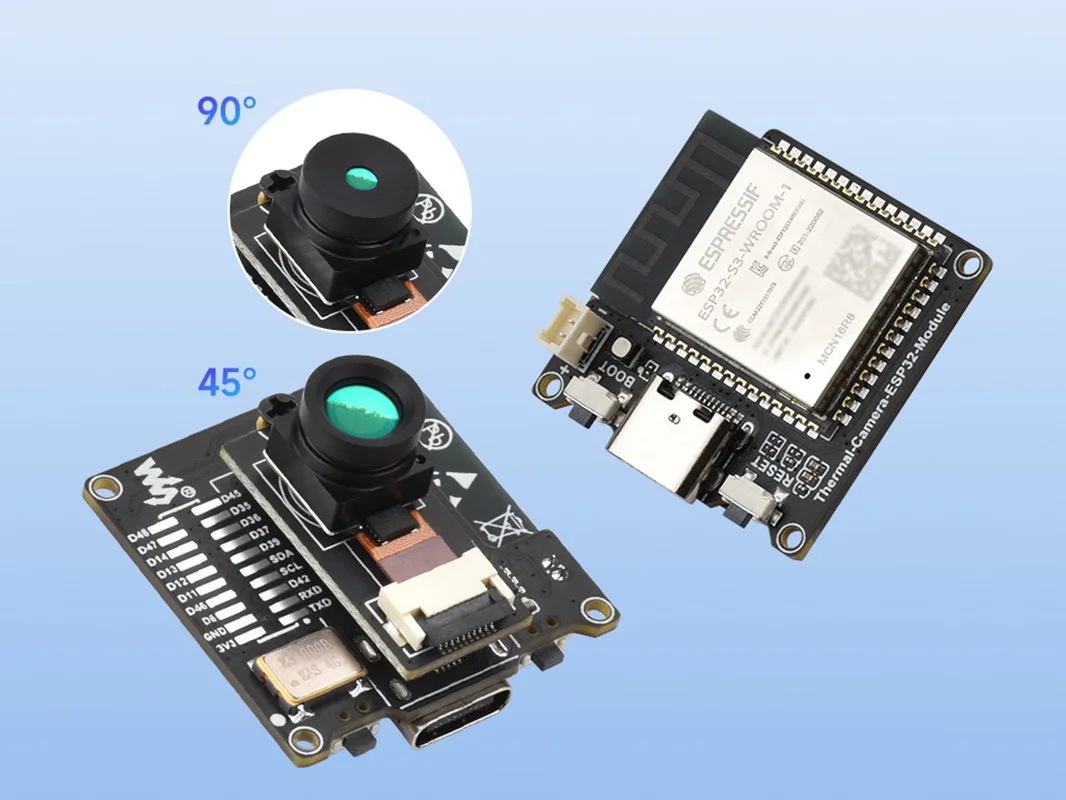

Provides options for 45°/90° FOV

Meet the needs of different scenarios
