Huidu Single-dual Color RJ45 Port Series LED Controller Card HD-E64 E63 E62 LED Controller

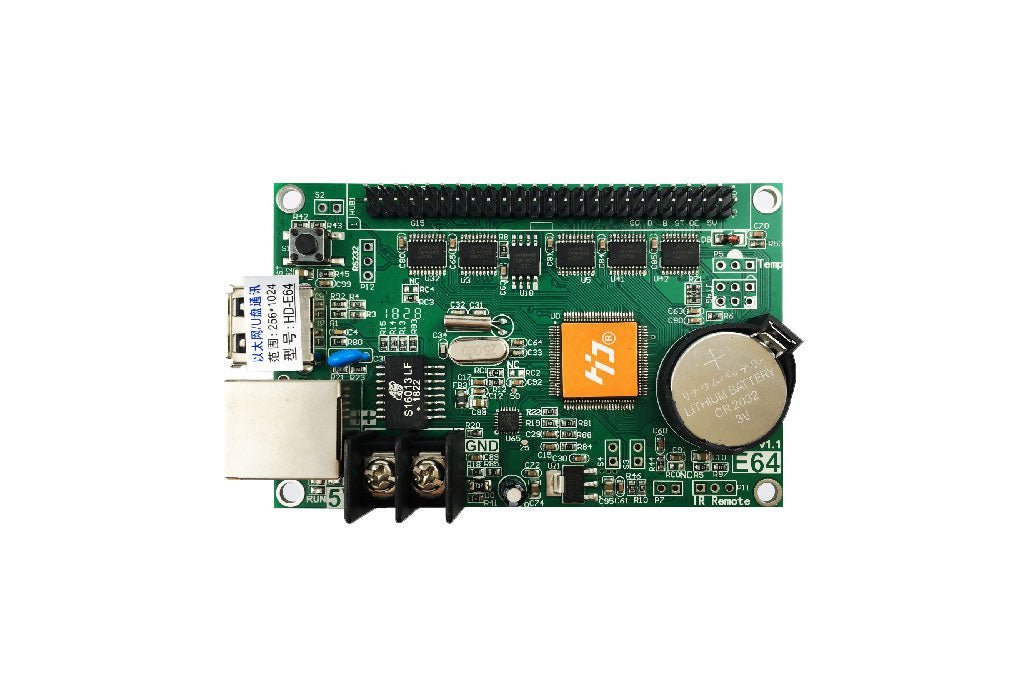

HUIDU Single-dual Color Network Port Controller HD-E64

HD-E64/E63/E62 is a series of E-series control card, E, the network port, through the network cable to update the program. In addition, there are USB interface, but also through the U disk to update the program. Low cost, cost-effective, simplesoftware interface, easy to operate, better and rich display effect support for a variety of monochrome display..

Mode：HD-E62/E63/E64
Control range：1024*64~2048*64      Memory：4MB~8MB

• Model      Single-dual Limit w*h   FLASH Capacity         Gray level         Interface

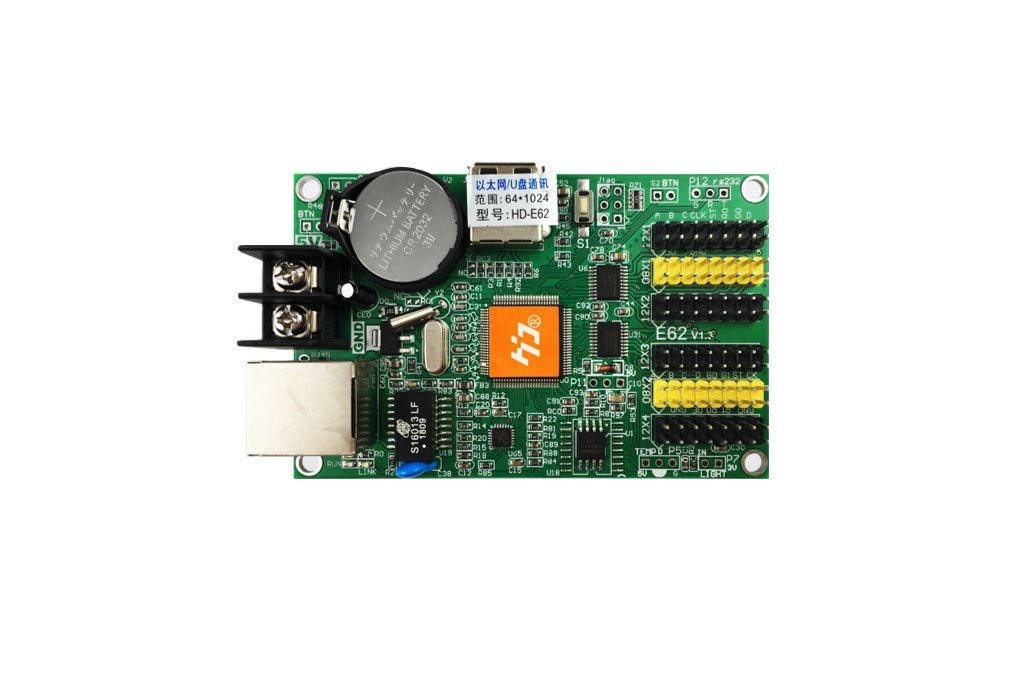

  HD-E62     1024*64， 2048*32               4M                              8              2*HUB08+4*HUB12
  HD-E63     1024*128， 3072*32             4M                              8              4*HUB08+8*HUB12
  HD-E64      1024*256,   2048*64             8M                              8              1*50PIN

Further Information:
HUIDU HD-E64/E63/E62
Huidu HD-E64 LED Controller Specification
Huidu HD-E63 LED Controller Specification
Huidu HD-E62 LED Controller Specification
