7 inch Display HDMI LCD Touch Screen

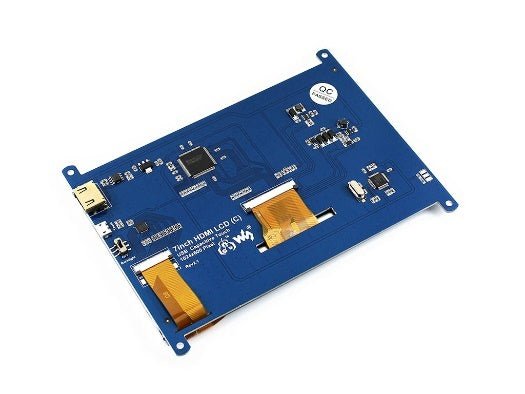

Waveshare 7 inch Display IPS Capacitive Touch Screen adapting to HDMI interface 1024×600 Resolution (C)

Features:

• 7inch IPS screen, 1024×600 hardware resolution
• Capacitive touch control
• Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers

1. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
2. When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

• Backlight can be turned off to lower power consumption



—————————————————————————————————————————————————

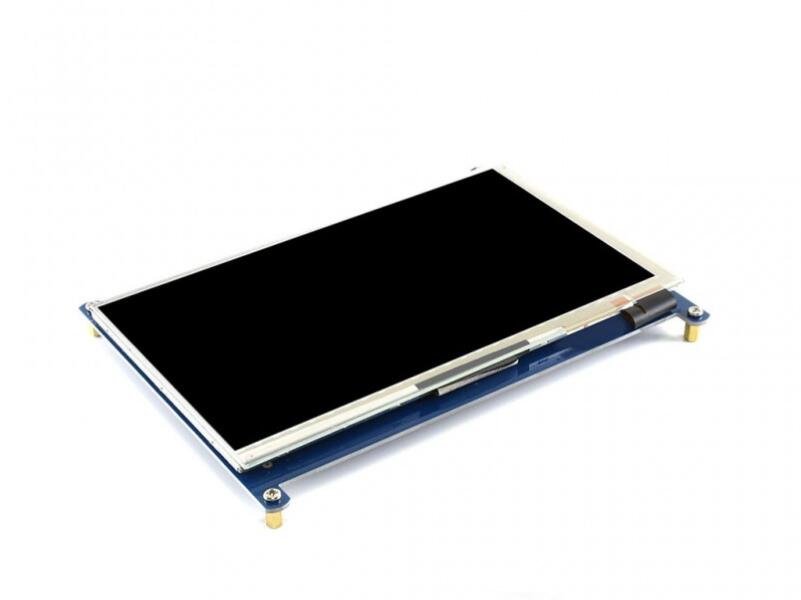

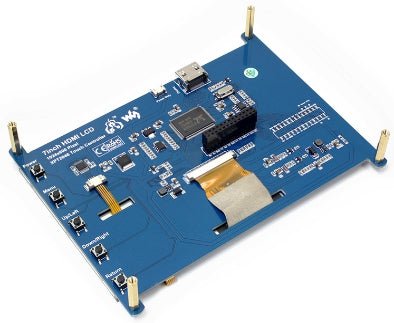

Waveshare 7 inch HDMI Resistive Touch Screen 1024×600 for Raspberry Pi/Zero W

Features:

• 1024×600 hardware resolution
• Resistive touch control
• Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
• Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
• Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
• Supports 100-level backlight adjustment

Package List:



—————————————————————————————————————————————————

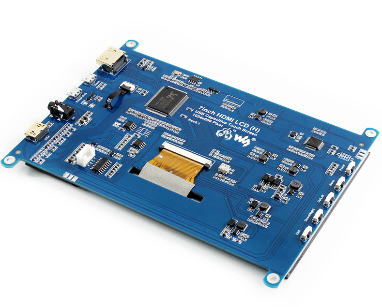

Waveshare 7 inch HDMI Display IPS Capacitive Touch Screen 1024×600 for Raspberry Pi/BB Black/Banana Pi (H)

Features:

• IPS screen, 1024×600 hardware resolution, configurable by software (up to 1920×1080)
• Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers

1. When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
2. When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

• Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• 3.5mm audio jack, speaker connector, supports HDMI audio output
• Also supports VGA input (specific cable is required and should be purchased separately)

Package List:
