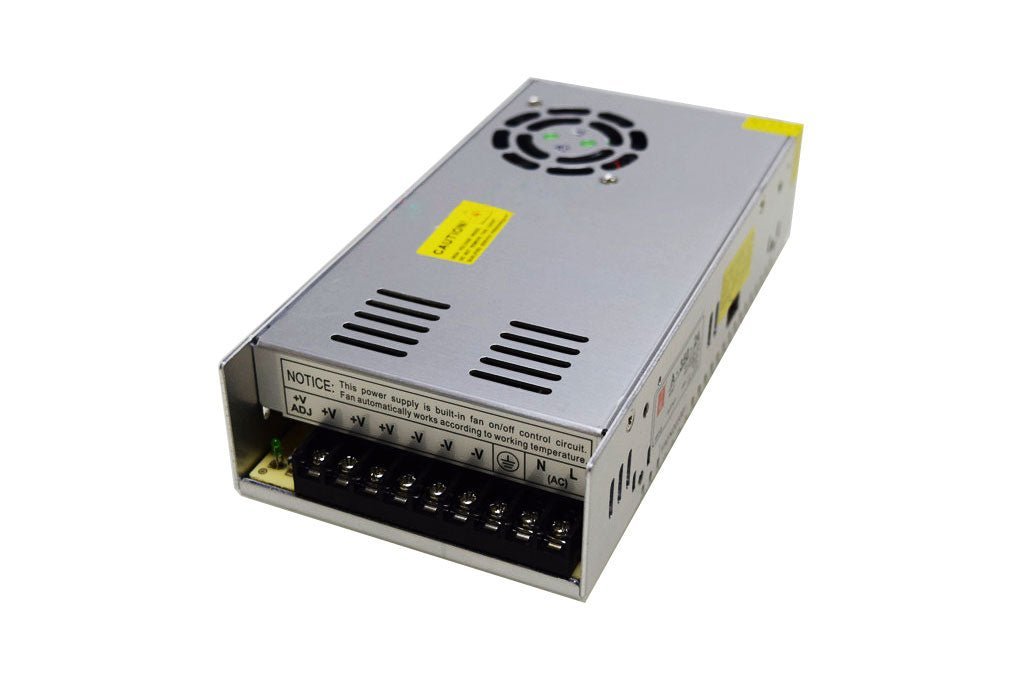

CZCL LED Displays Standard Power Supply A-320-5 5V60A LED Low Profile Switching Power Supply

CZCL A-320-5  5V60A LED Displays Standard Power Supply

Product model: A-320-5
DC output: 5V
Output current range: 0 ~ 60A
Ripple noise Note 2 0 ~ 50 ℃ 100mV 120mV 150mV 280mV
Peak voltage: -25 ~ 0 ℃ 200mV 240mV 300mV 560mV
Output voltage adjustment range: ± 10% of rated output voltage
Voltage regulation accuracy: ± 2.0% Power supply voltage adjustment rate: ± 15%
Load regulation rate: ± 2.0%
Output start time ≤ 4S (220Vac input, full load)
Output hold time ≥16mS (220Vac input, full load)
Temperature coefficient: ± 0.03% / ℃
Output: voltage overshoot <5.0%
Input voltage range: 200Vac ~ 240Vac
Frequency range: 47Hz ~ 63Hz
Efficiency (typical): 220Vac 85%
Input current (maximum): 2.5A
Input: Start-up inrush current (typical value) 50A @ 220Vac power cold start
Overcurrent protection: 90% ~ 105% rated output current, constant power
Protection function: over power protection 90% ~ 105% rated output power, constant power
Short-circuit protection: It can be short-circuited for a long time, and can be automatically recovered after eliminating the short-circuit
Working temperature and humidity: -25 ℃ ~ 50 ℃; 20% ~ 90% RH non-condensing Working environment
Storage temperature and humidity: -40 ℃ ~ 85 ℃; 10% ~ 95% RH non-condensing
Safety standard: EN60950-1
Dielectric strength: input-output: 3.0KVac / 10mA;
Input-ground: 1.5KVac / 10mA; output-ground: 0.5KVDC / 10mA
Insulation resistance: 100M ohms leakage current
Input to ground ≤3.5mA Input to output ≤0.25mA (230Vac)
Safety and Electromagnetic Compatibility Standard Electromagnetic Immunity EN61000-4-2,4,5,11; ENV50204, Class A Light Industry Standard MTBF (MIL-HDBK-217F) More than 100,000Hrs (25 ℃, full load)
Dimensions (L * W * H): 227X115X50mm
Cooling method Forced air cooling

Note 1. Unless otherwise specified, all specifications are rated input, rated load, and 25 ° C ambient temperature. 2. Ripple noise test method: use a 12 # twisted pair, and the terminal should be connected in parallel with 0.1uF And 10uF of capacitance, measured under the 20MHz bandwidth of the oscilloscope. 3. The power supply will be installed as a component on the final device, the final device still needs to meet the EMC conditions
