Sale!

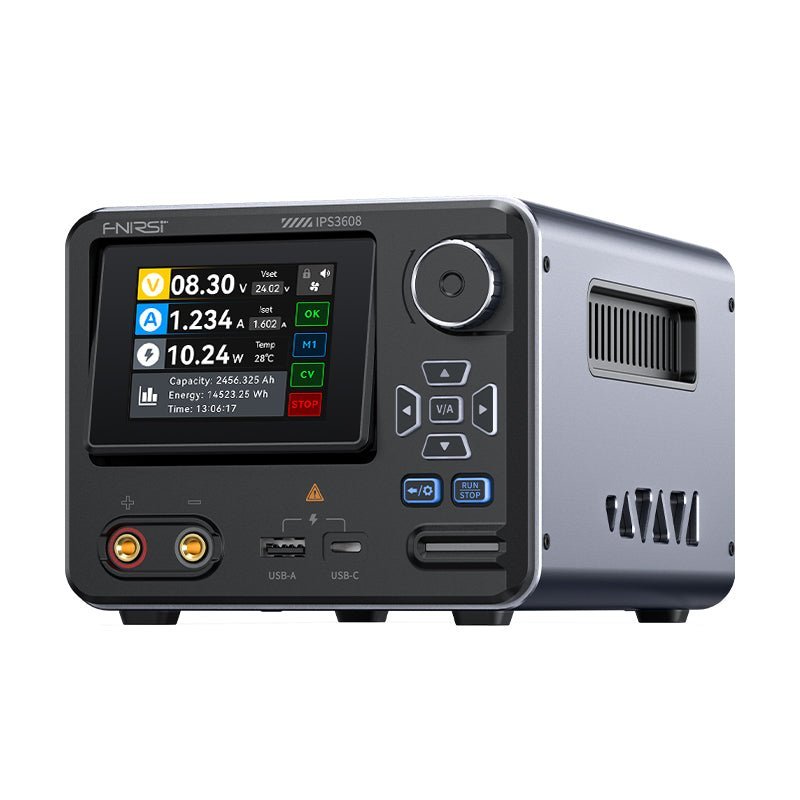

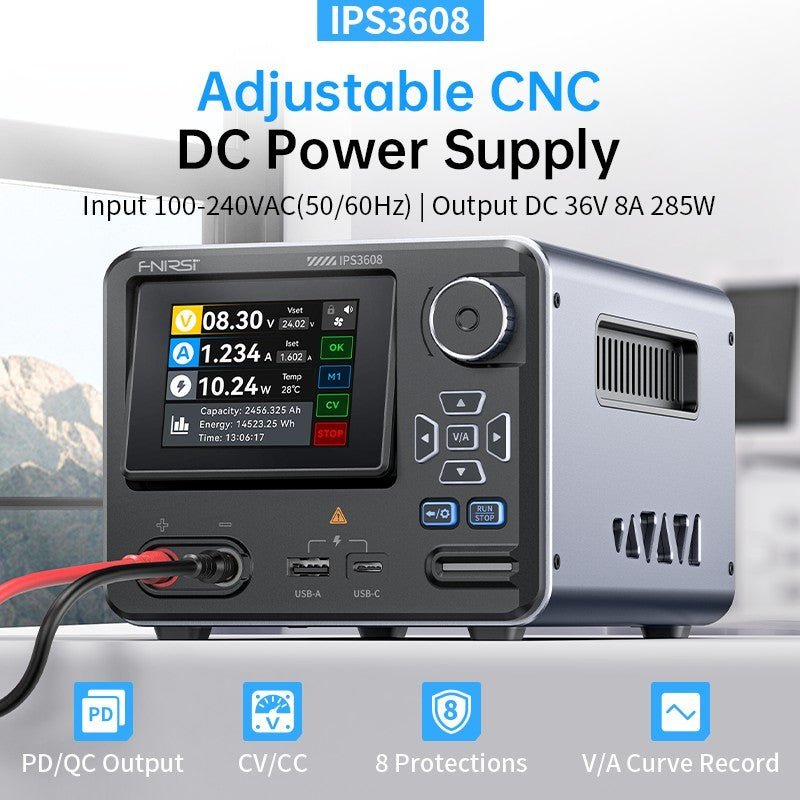

FNIRSI® IPS3608 AC-DC Intelligent Digital Control Power Supply
Original price was: $1,713.00.$1,110.00Current price is: $1,110.00.
IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections.
Specifications
Basic Parameters:
Model
IPS3608
Screen Material
2.8-inch color screen
Backlight
Adjustable backlight brightness
Language
中文, English
Product Size
≈138×214×115mm
Product Weight
≈1539g
Battery Parameters:
Input
Voltage Range: 100-240VAC(50/60Hz)
Setting Resolution
Voltage: 0.01V
Current: 0.001A
Current: 0.001A
Readback Value Accuracy
Output Voltage: ±(0.3%+3 bits)
Output Current: ±(0.15%+5 bits)
Output Current: ±(0.15%+5 bits)
Operating Environment
-10℃~40℃, 0%~75%RH
Protection Mechanism
◾ Overvoltage protection
◾ Overcurrent protection
◾ Overpower protection
◾ Overtemperature protection
◾ Undervoltage protection
◾ Short circuit protection
◾ Input reverse connection protection
◾ Output reverse injection protection
◾ Overcurrent protection
◾ Overpower protection
◾ Overtemperature protection
◾ Undervoltage protection
◾ Short circuit protection
◾ Input reverse connection protection
◾ Output reverse injection protection
Output
Voltage: DC 0~36V
Current: 0~8A
Power: 0~285W
Current: 0~8A
Power: 0~285W
Load Regulation Rate
±(0.2%+2 bits)
※Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V
Fast Charging Protocol:
USB-C
PD3.0
USB-A
HUAWEI FCP
HUAWEI SCP
AFC
QC2.0
QC3.0
HUAWEI SCP
AFC
QC2.0
QC3.0
Package List:
◉ IPS3608 Host × 1
◉ Power Cable × 1 (US or EU Plug)
◉ Alligator Clip Wire × 2 (Black & Red)
◉ Data Cable × 1
◉ User Manual × 1
◉ Packing Box × 1
◉ Power Cable × 1 (US or EU Plug)
◉ Alligator Clip Wire × 2 (Black & Red)
◉ Data Cable × 1
◉ User Manual × 1
◉ Packing Box × 1
