nRF52832-MDK V2 IoT Development Kit

Description

The nRF52832-MDK V2 is a fully open-source, versatile single board development kit for Bluetooth® low energy, ANT and 2.4GHz proprietary applications using the nRF52832 SoC in a convenient USB dongle form factor.

The kit comes with a fully integrated debugger (also known as DAPLink) that provides USB drag-and-drop programming, USB Virtual COM port and CMSIS-DAP interface.

The kit gives access to 24 I/Os and interfaces via headers and has a programmable RGB LED. It also has a 2.4GHz chip antenna on-board which is quite convenient to develop IoT wireless applications.

The nRF52832-MDK V2 can be used to play with multi-frameworks such as: nRF5 SDK, nRF5 SDK for Mesh, Mbed OS 5, Zephyr, Mynewt, JerryScript, Espruino, MicroPython, Web Bluetooth, Eddystone, etc.

Hardware Features

• Nordic Semiconductor nRF52832
• ARM® Cortex™-M4F
• 512kB Flash Memory + 64kB RAM
• Bluetooth low energy, ANT and 2.4GHz
• NFC™-A tag
• Program/Debug options with DAPLink
• MSC – drag-n-drop programming flash memory
• CDC – virtual com port for log, trace and terminal emulation
• HID – CMSIS-DAP compliant debug channel
• Up to 24 GPIOs at headers
• Reset Button
• RGB LED
• 2.4GHz chip antenna
• 3.3V regulator with 1A peak current output
• VBUS & VIN Power-Path Management
• Breadboard-friendly
• 63mm x 18mm x 4mm without headers soldered in

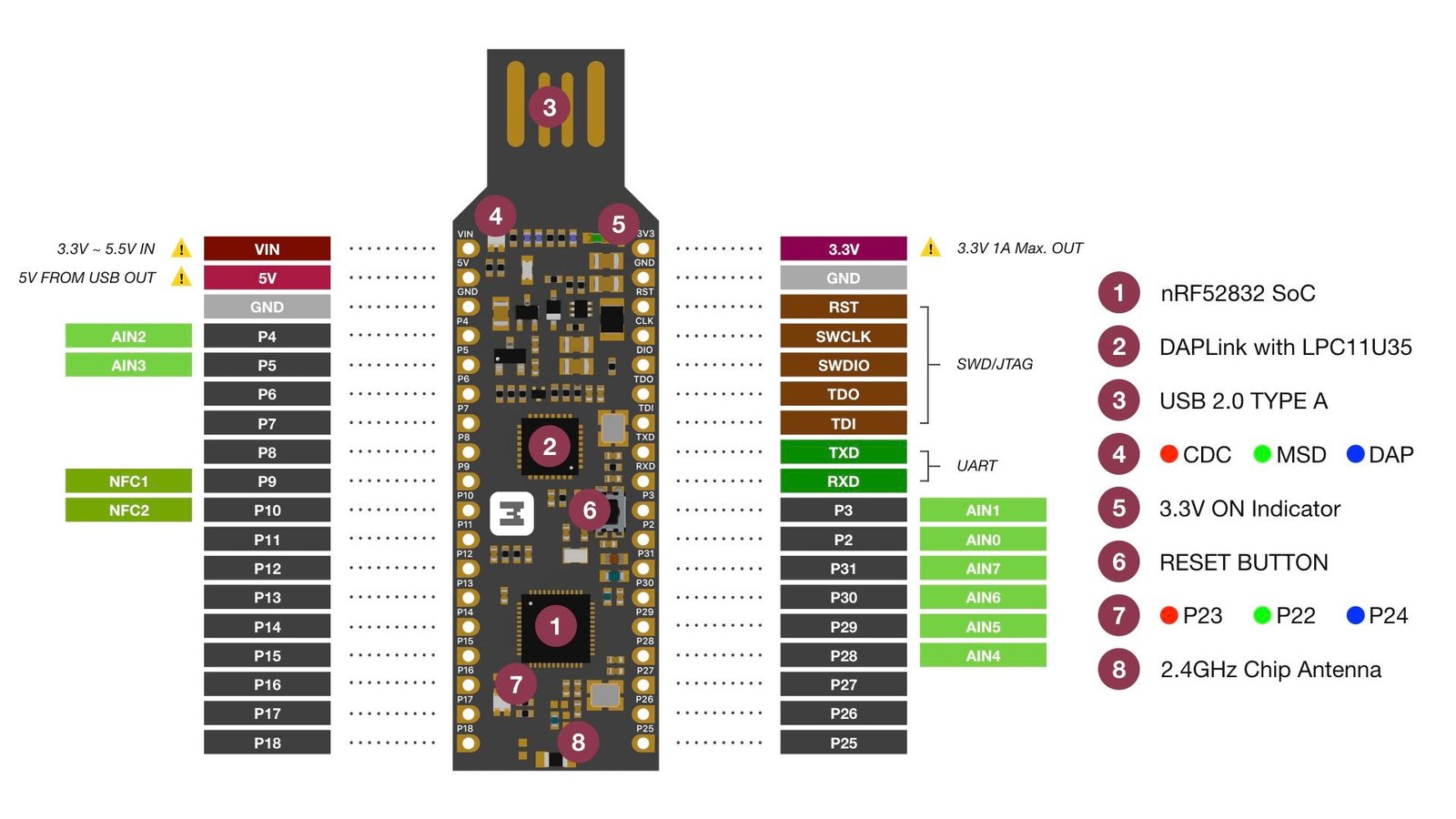

Pinout Diagram

Kit Contains

• 1x nRF52832-MDK V2 Board
• 2x 18 Pin 2.54mm THT Pin Header

Documents

• Getting Started with nRF52832-MDK V2
• Source Code
• Design Files
