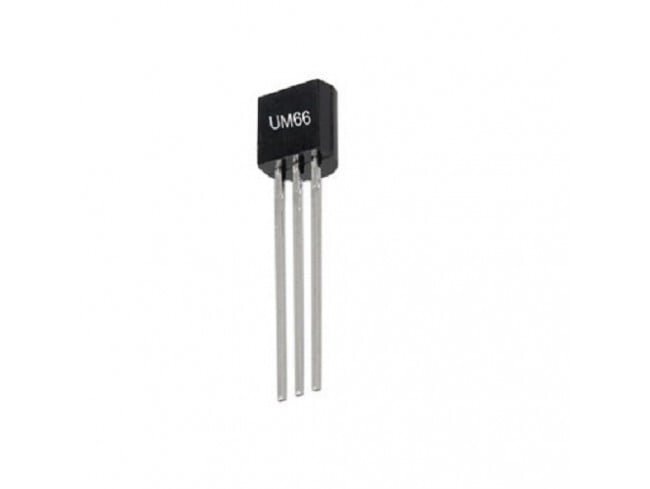

UM66 Melody Generator IC – CMOS LSI Sound Chip for Doorbells, Toys, Alarms

📝 Product Description (SEO Enhanced)
The UM66 Melody Generator IC is a popular and compact CMOS LSI sound chip, pre-programmed to play a melody when powered. Ideal for use in doorbells, greeting cards, toys, and alarms, it operates on ultra-low power and delivers a crisp melody output with minimal external components.

This IC is part of the UM66TXXL series, each version offering different pre-programmed tunes. It includes an internal oscillator circuit, allowing for simplified circuit designs—just add a transistor and speaker to create a complete musical output system.

Thanks to its built-in ROM and CMOS technology, the UM66 consumes minimal power, making it perfect for battery-operated applications. It is a favorite in DIY hobby electronics, school projects, and embedded sound modules.

🔧 Key Features
🎶 Built-in ROM with pre-recorded melody

⚙️ On-chip Oscillator – Requires only a few external components

🔋 Ultra-Low Power Consumption – Ideal for battery-powered circuits

💡 Wide Voltage Range – Typically 1.5V to 4.5V

🧩 CMOS Technology – Compact and efficient

🔊 Perfect for Sound Applications – Toys, doorbells, musical greeting cards, alarms

📋 Technical Specifications：

Attribute Details
Product Series UM66TXXL
Technology CMOS LSI
Operating Voltage 1.5V – 4.5V
Power Consumption Very Low
Output Type Melody Tone (via base drive output)
Oscillator Internal
IC Package TO-92 (commonly) or DIP
Applications Toys, Doorbells, Alarms, Greeting Cards

🎯 Applications
Musical doorbells and buzzers

Talking toys and electronic instruments

Greeting cards and novelty items

School science fair projects

Simple embedded audio alerts

📦 Package Includes
1 × UM66 Melody IC (variant may vary)
